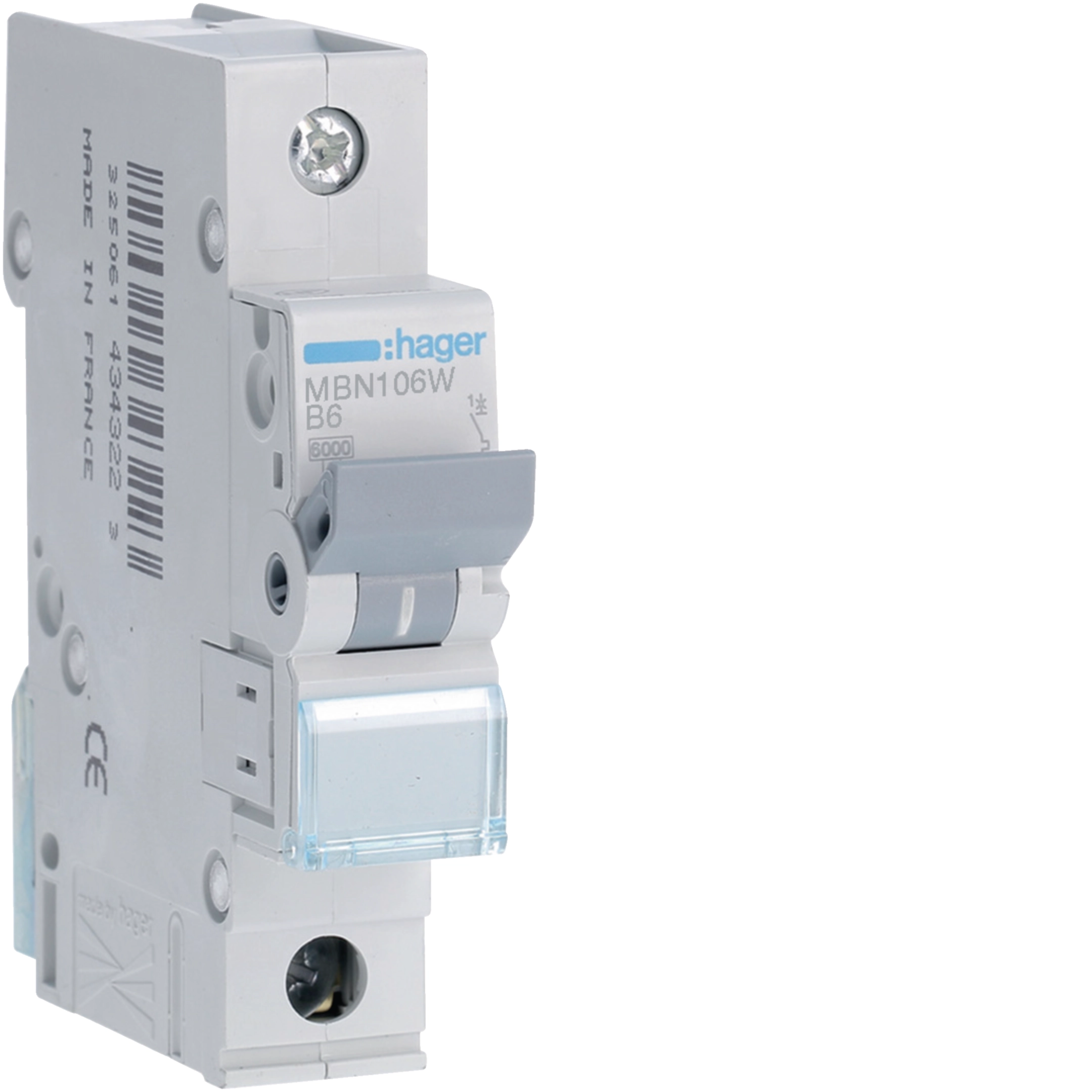

Hager 6 A single-pole B-curve MCB, 6/10 kA, IP20

Hager · Hager

HAGER 6A 1P MCB B TYPE

KEW code: MBN106W
Brand: Hager
Manufacturer: Hager
MPN: MBN106W
Category: Distribution
Specification: - Rated current a: 6. - Poles: 1. - Curve: B. - Modules: 1. - Icn ka: 6. - Icu ka: 10. - Operational voltage v: 230, 400. - Insulation voltage v: 500. - Impulse withstand v: 4000. - Frequency hz: 50, 60. - IP rating: IP20. - Grid distance mm: 60. - Conductor range: massive 1-35 mm², flexible 1-25 mm². - Operating temperature c: -25, 70. - Dimensions: height 83 mm, width 17.5 mm, depth 70 mm.
Feature: 1P, B curve
Feature: 6 A rated current
Feature: 6 kA breaking capacity
Feature: 1 module wide
Feature: 230 to 400 V operational range
Feature: IP20 protection
