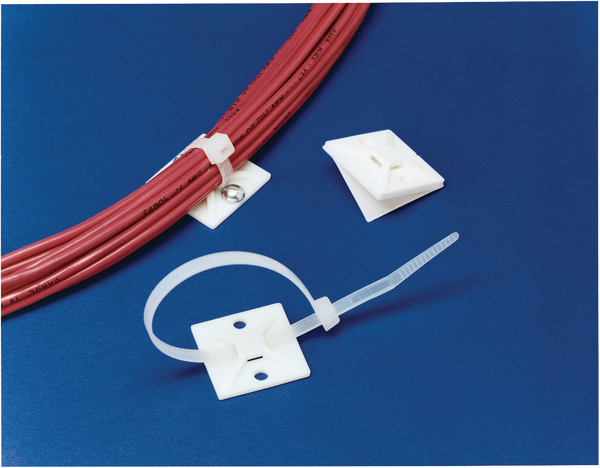

HellermannTyton 151-28469 28 × 28 mm self-adhesive cable-tie base
HellermannTyton · HellermannTyton
28x28 S/A CABLE TIE BASES
- KEW code
- MB4A
- Brand
- HellermannTyton
- Manufacturer
- HellermannTyton
- MPN
- 151-28469
- Category
- Fixings & Hardware
- Specification
- The product type is a square cable tie mount. The manufacturer article number is 151-28469. The manufacturer part description is MB4A-PA66-WH. The mount is 28 mm long and 28 mm wide. The mount height is 4.7 mm. The maximum accepted cable tie width is 5.4 mm. The mount provides four cable tie entry directions. The material is polyamide 6.6. The colour is white. The fixing method is self-adhesive with optional screw mounting. The fixing-hole diameter is 4 mm. The fixing-hole centres are 20.2 mm apart. The nominal adhesive thickness is 0.8 mm. The adhesive is synthetic rubber on a polyethylene foam base. The stated operating temperature range is -40 degrees C to 60 degrees C. The GTIN-13 is 5022660020803.
- Feature
- Square 28 x 28 mm mounting base.
- Feature
- Self-adhesive backing for quick installation.
- Feature
- Four-way cable tie entry.
- Feature
- Accepts cable ties up to 5.4 mm wide.
- Feature
- Optional 4 mm screw fixing points.
- Feature
- White polyamide 6.6 construction.
