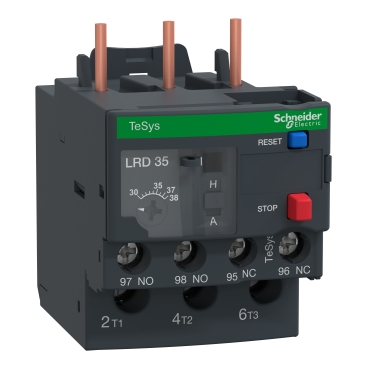

Schneider Electric Thermal Overload Relay — 30–38 A — Contactor Mount — 1 NO + 1 NC — IP20
Schneider Electric
No stock / backorder
TeSys overload relay for motor protection with a 30 to 38 A adjustment range and compact contactor-mounted form.
Three-pole thermal overload relay for motor protection with an adjustable 30 to 38 A setting range. Suitable for compatible TeSys contactor mounting with manual or automatic reset.
- KEW code
- LRD-35
- Brand
- Schneider Electric
- Manufacturer
- Schneider Electric
- MPN
- LRD35
- Category
- Control Gear
- Specification
- - Product type: thermal overload relay. - Adjustment range: 30 to 38 A. - Trip class: Class 10A. - Poles: 3. - Normal state configuration: 1 NO / 1 NC. - Mount type: contactor mount. - Contact voltage: 690 V ac. - Motor power rating: 18.5 kW. - Reset method: automatic and manual. - Terminal type: screw. - IP rating: IP20. - Operating temperature: -20 to 60. °C. - Dimensions: height 45 mm, width 45 mm, depth 70 mm, length 137 mm. - Auxiliary contacts: 2. - Compatible contactors: LC1D32, LC1D38.
- Feature
- Adjustable motor protection from 30 to 38 A
- Feature
- Class 10A thermal overload protection
- Feature
- Manual and automatic reset options
- Feature
- 1 NO + 1 NC auxiliary contact set
- Feature
- Screw terminal connection
- Feature
- Contactor-mounted format
