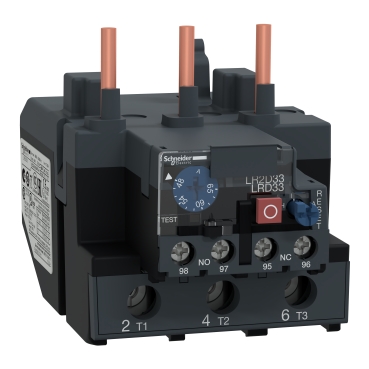

Schneider Electric Thermal Overload Relay — 48–65 A — Direct Mount — 1 NO + 1 NC — IP20
Schneider Electric
No stock / backorder
TeSys overload relay for mid-high current motor protection with a 48 to 65 A setting range and compact control features.
Thermal overload relay for motor protection with a 48 to 65 A setting range. Designed for compatible TeSys D starter assemblies with manual or automatic reset control.
- KEW code
- LRD-3359
- Brand
- Schneider Electric
- Manufacturer
- Schneider Electric
- MPN
- LRD3359
- Category
- Control Gear
- Specification
- - Product type: thermal overload relay. - Adjustment range: 48 to 65 A. - Trip class: Class 10A. - Poles: 3. - Normal state configuration: 1 NO / 1 NC. - Mount type: direct. - Contact voltage: 690 V ac. - Motor power rating: 30 kW. - Reset method: automatic and manual. - Terminal type: screw. - IP rating: IP20. - Operating temperature: -20 to 60. °C. - Dimensions: height 55 mm, width 55 mm, depth 81 mm, length 115 mm. - Auxiliary contacts: 2. - Compatible contactors: LC1D80, LC1D95.
- Feature
- Adjustable motor protection from 48 to 65 A
- Feature
- Class 10A thermal overload protection
- Feature
- Phase-failure and load-unbalance detection
- Feature
- Manual and automatic reset options
- Feature
- 1 NO + 1 NC auxiliary contact set
- Feature
- Compatible with LC1D80 and LC1D95 contactors
