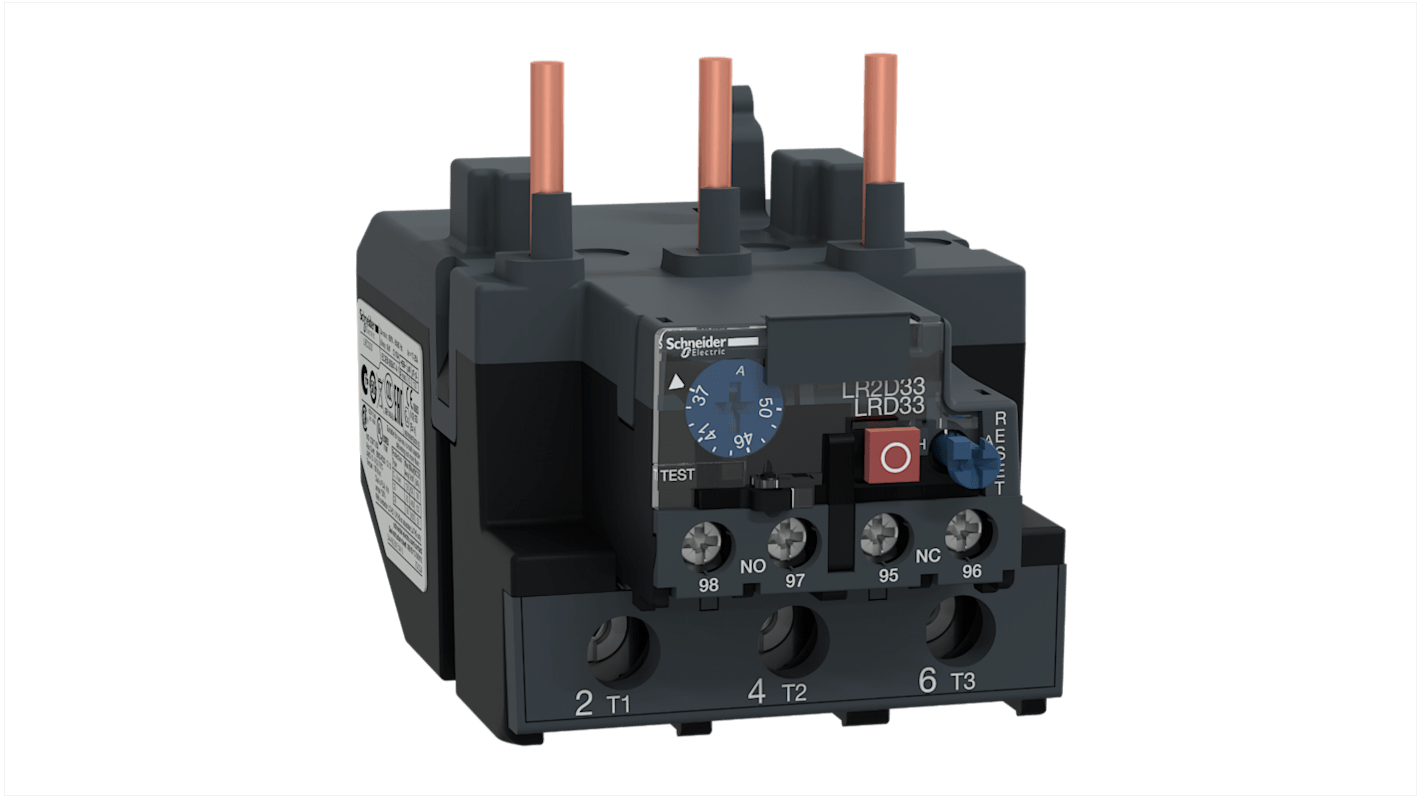

Schneider Electric Thermal Overload Relay — 37–50 A — Direct Mount — 1 NO + 1 NC — IP20

Schneider Electric · Schneider Electric

OVERLOAD RELAY 37-50A

KEW code: LRD-3357
Brand: Schneider Electric
Manufacturer: Schneider Electric
MPN: LRD3357
Category: Control Gear
Specification: - Product type: thermal overload relay. - Adjustment range: 37 to 50 A. - Trip class: Class 10A. - Poles: 3. - Normal state configuration: 1 NO / 1 NC. - Mount type: direct. - Contact voltage: 690 V ac. - Motor power rating: 45 kW. - Reset method: automatic and manual. - Terminal type: screw. - IP rating: IP20. - Operating temperature: -20 to 60. °C. - Dimensions: height 55 mm, width 55 mm, depth 123 mm, length 236 mm. - Auxiliary contacts: 2. - Compatible contactors: LC1D80, LC1D95.
Feature: Adjustable motor protection from 37 to 50 A
Feature: Class 10A thermal overload protection
Feature: Phase-failure and load-unbalance detection
Feature: Manual and automatic reset options
Feature: 1 NO + 1 NC auxiliary contact set
Feature: Compatible with LC1D80 and LC1D95 contactors
