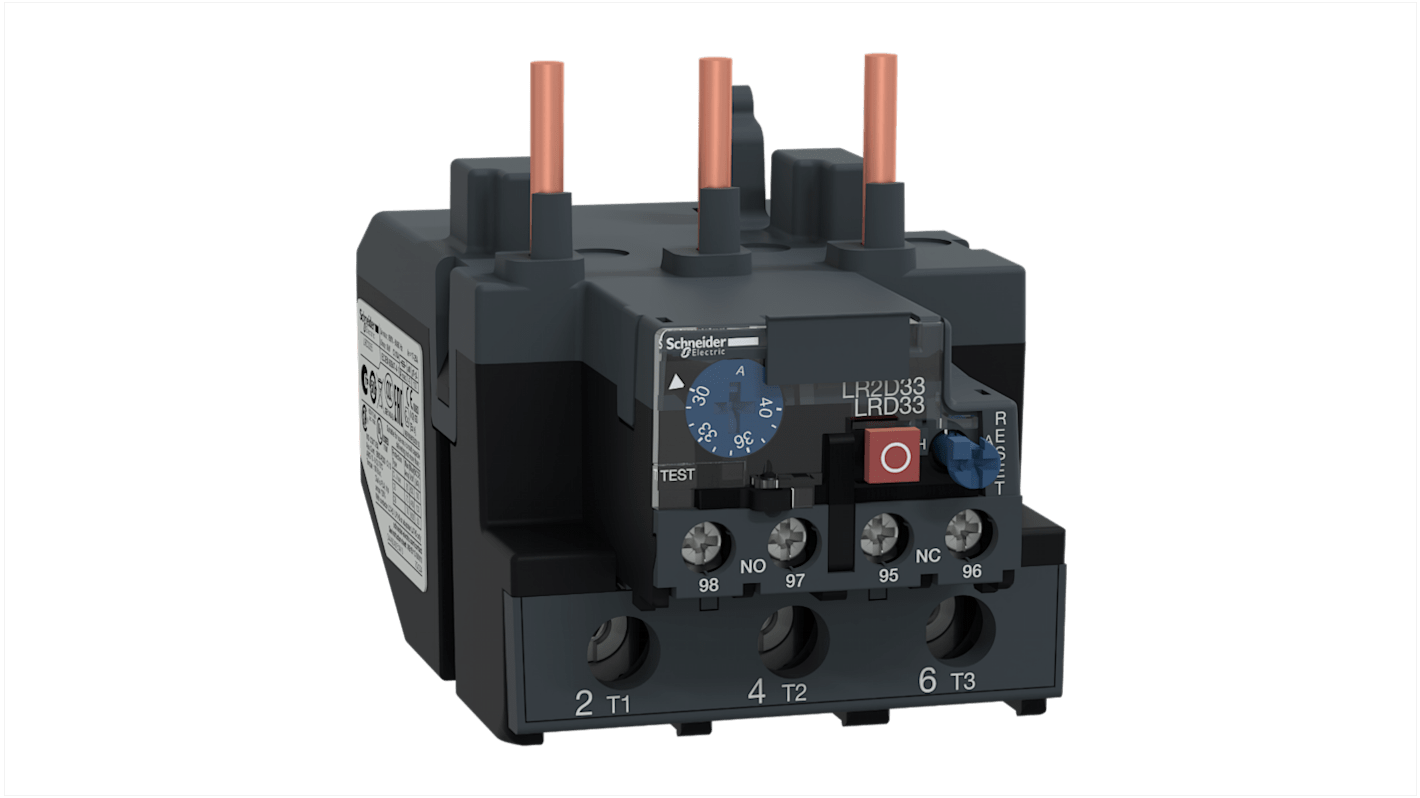

Schneider Electric Thermal Overload Relay — 30–40 A — Direct Mount — 1 NO + 1 NC — IP20
Schneider Electric · Schneider Electric
OVERLOAD RELAY 40-40A
- KEW code
- LRD-3355
- Brand
- Schneider Electric
- Manufacturer
- Schneider Electric
- MPN
- LRD3355
- Category
- Control Gear
- Specification
- - Product type: thermal overload relay. - Adjustment range: 30 to 40 A. - Trip class: Class 10A. - Poles: 3. - Normal state configuration: 1 NO / 1 NC. - Mount type: direct. - Contact voltage: 1000 V ac. - Motor power rating: 18.5 kW. - Reset method: automatic and manual. - Terminal type: screw. - IP rating: IP20. - Operating temperature: -20 to 60. °C. - Dimensions: height 81 mm, width 70 mm, depth 115 mm. - Auxiliary contacts: 2. - Compatible contactors: LC1D80, LC1D95.
- Feature
- Adjustable motor protection from 30 to 40 A
- Feature
- Class 10A thermal overload protection
- Feature
- Phase-failure and load-unbalance detection
- Feature
- Manual and automatic reset options
- Feature
- 1 NO + 1 NC auxiliary contact set
- Feature
- Compatible with LC1D80 and LC1D95 contactors
