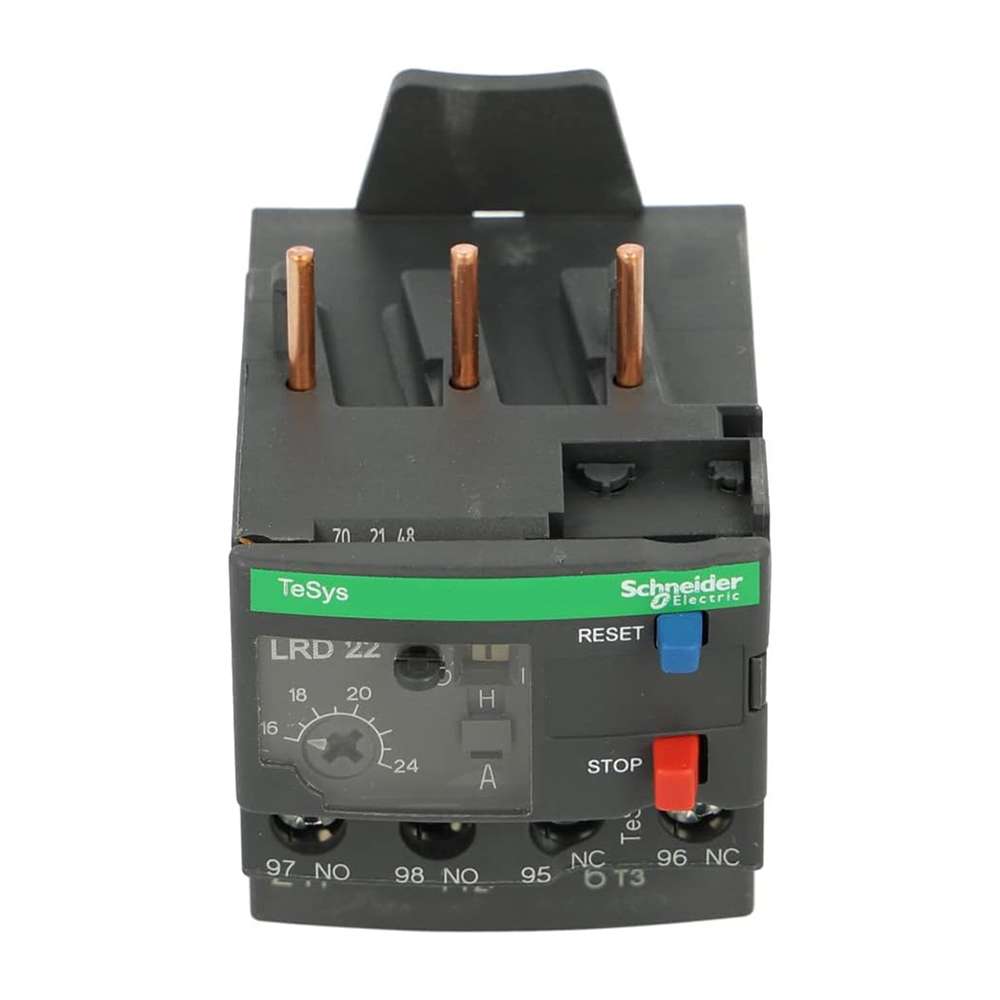

Schneider Electric Thermal Overload Relay — 16–24 A — Direct Mount — 1 NO + 1 NC — IP20
Schneider Electric · Schneider Electric
16-24A OVERLOAD RELAY
- KEW code
- LRD-22
- Brand
- Schneider Electric
- Manufacturer
- Schneider Electric
- MPN
- LRD22
- Category
- Control Gear
- Specification
- - Product type: thermal overload relay. - Adjustment range: 16 to 24 A. - Trip class: Class 10A. - Poles: 3. - Normal state configuration: 1 NO / 1 NC. - Mount type: direct. - Contact voltage: 690 V ac. - Motor power rating: 15 kW. - Reset method: automatic and manual. - Terminal type: screw. - IP rating: IP20. - Operating temperature: -20 to 60. °C. - Dimensions: height 66 mm, width 45 mm, depth 70 mm. - Auxiliary contacts: 2. - Compatible contactors: LC1D25, LC1D32, LC1D38.
- Feature
- Adjustable motor protection from 16 to 24 A
- Feature
- Class 10A thermal overload protection
- Feature
- Manual and automatic reset options
- Feature
- 1 NO + 1 NC auxiliary contact set
- Feature
- Screw terminal connection
- Feature
- Direct mounting on compatible contactors
