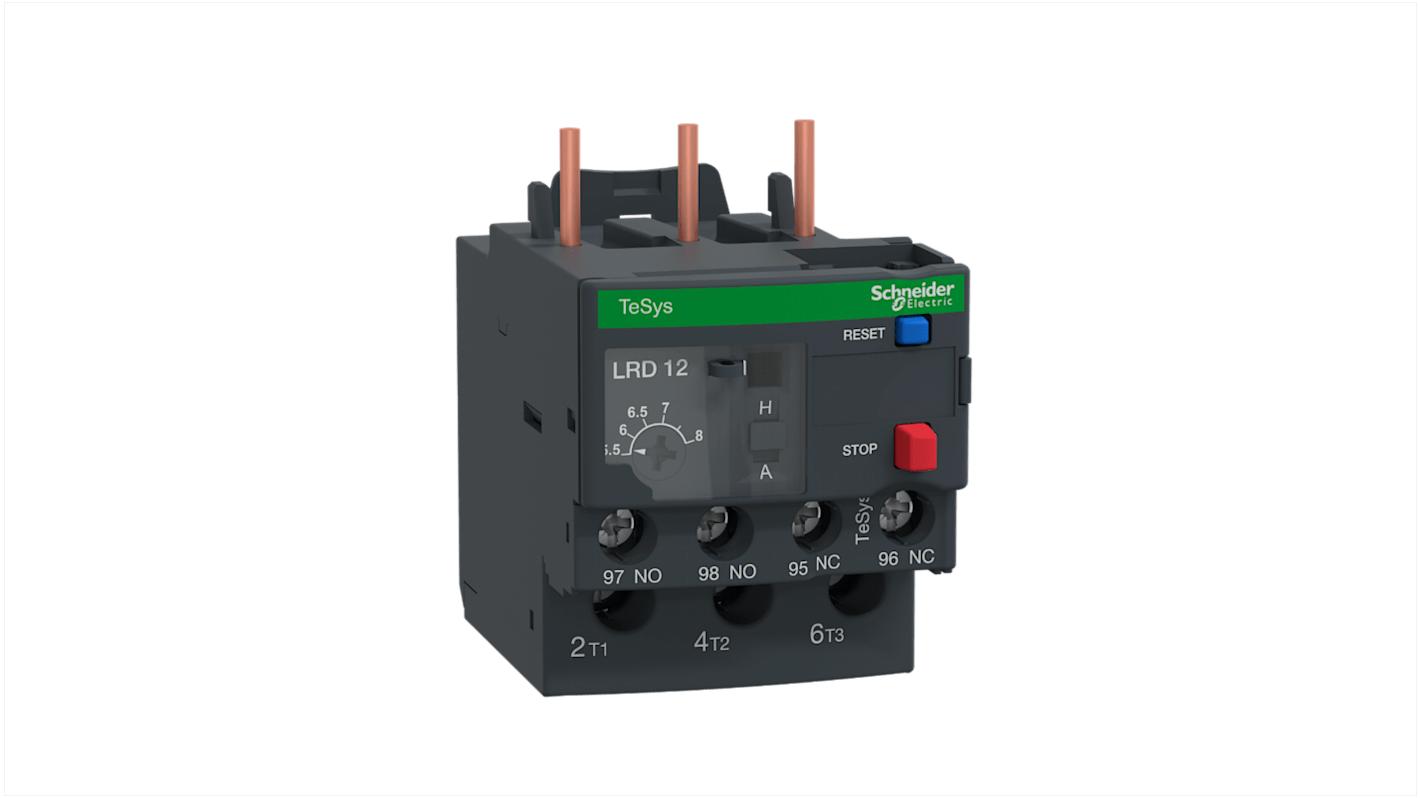

Schneider Electric Differential Thermal Overload Relay — 5.5–8 A — Direct Mount — 1 NO + 1 NC — IP20
Schneider Electric · Schneider Electric
OVERLOAD RELAY 5.5-8A
- KEW code
- LRD-12
- Brand
- Schneider Electric
- Manufacturer
- Schneider Electric
- MPN
- LRD12
- Category
- Control Gear
- Specification
- - Product type: differential thermal overload relay. - Application: motor protection. - Current range a: 5.5 to 8. - Tripping class: 10A. - Poles: 3. - Mount type: direct. - Reset method: automatic and manual. - Terminal type: screw. - Auxiliary contacts: 1 NO + 1 NC. - IP rating: IP20. - Network type: AC, DC. - Rated operational voltage vac: 690. - Phase failure sensitivity: Trips at 130% of Ir on two phases, the last one at 0. - Power rating kw: 3.
- Feature
- 5.5 to 8 A thermal setting range
- Feature
- Class 10A trip characteristic
- Feature
- Direct contactor mounting
- Feature
- Automatic and manual reset
- Feature
- 1 NO + 1 NC auxiliary contacts
