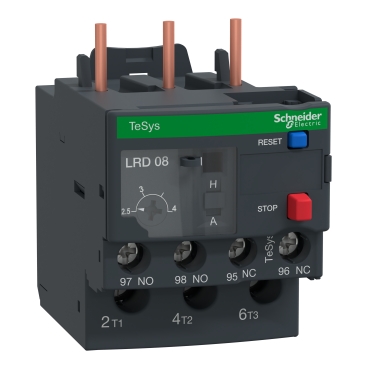

Schneider Electric Thermal Overload Relay — 2.5–4 A — Direct Mount — 1 NO + 1 NC — IP20
Schneider Electric
In stock
Compact motor-protection relay with direct contactor mounting, automatic or manual reset, and a 1 NO + 1 NC auxiliary contact set.
Direct-mount thermal overload relay for motor protection with a 2.5 to 4 A adjustment range and class 10A trip characteristic.
- KEW code
- LRD-08
- Brand
- Schneider Electric
- Manufacturer
- Schneider Electric
- MPN
- LRD08
- Category
- Control Gear
- Specification
- - Product type: thermal overload relay. - Application: motor protection. - Current range a: 2.5 to 4. - Tripping class: 10A. - Poles: 3. - Mount type: direct. - Reset method: automatic and manual. - Terminal type: screw. - Auxiliary contacts: 1 NO + 1 NC. - IP rating: IP20. - Network type: AC, DC. - Rated operational voltage vac: 690. - Power rating kw: 1.5.
- Feature
- 2.5 to 4 A thermal setting range
- Feature
- Class 10A trip characteristic
- Feature
- Direct contactor mounting
- Feature
- Automatic and manual reset
- Feature
- 1 NO + 1 NC auxiliary contacts
