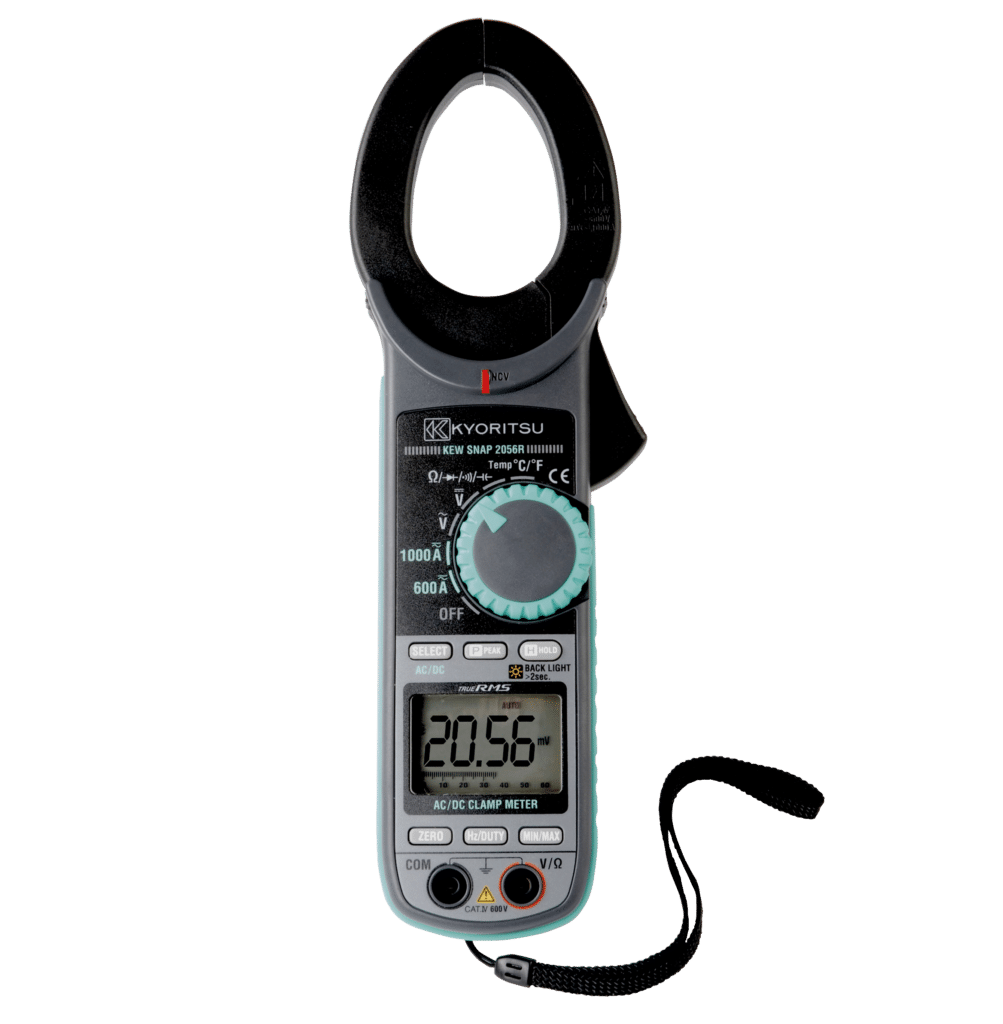

Kewtech KEW2056R True-RMS AC/DC clamp meter, 1000 A

Kewtech · Kyoritsu Electrical Instruments Works, Ltd.

Low stock

True-RMS clamp meter for AC/DC current to 1000 A and voltage to 600 V, with a CAT IV 600 V safety rating.

The Kewtech KEW2056R measures AC and DC current up to 1000 A using its clamp, without disconnecting the conductor. It also measures AC/DC voltage up to 600 V and offers True-RMS readings, continuity, frequency and capacitance functions. Its CAT IV 600 V rating and 40 mm conductor capacity help distinguish it from lower-rated clamp meters.

KEW code

KEW2056R

Brand

Kewtech

Manufacturer

Kyoritsu Electrical Instruments Works, Ltd.

MPN

KEW 2056R

Category

Tools & Accessories

Specification

AC current: 0–600.0/1000 A. DC current: 0–600.0/1000 A. AC/DC voltage: up to 600 V. True-RMS measurement for non-sinusoidal loads. Resistance: up to 60 MΩ. Continuity threshold: 100 Ω. Capacitance: 400 nF / 4 / 40 μF. Frequency: 10 / 100 Hz / 1 / 10 kHz. Conductor capacity: 40 mm. Safety: IEC 61010-1 CAT IV 600 V. Display: 6039 counts with bar graph. Battery: 2 × AAA. Dimensions: 254 × 82 × 36 mm; weight: 310 g.

Feature

1000 A AC and DC clamp measurement.

Feature

True-RMS readings for modern loads.

Feature

CAT IV 600 V safety rating.

Feature

Multimeter and non-contact voltage functions.

Feature

Peak and min/max capture.
