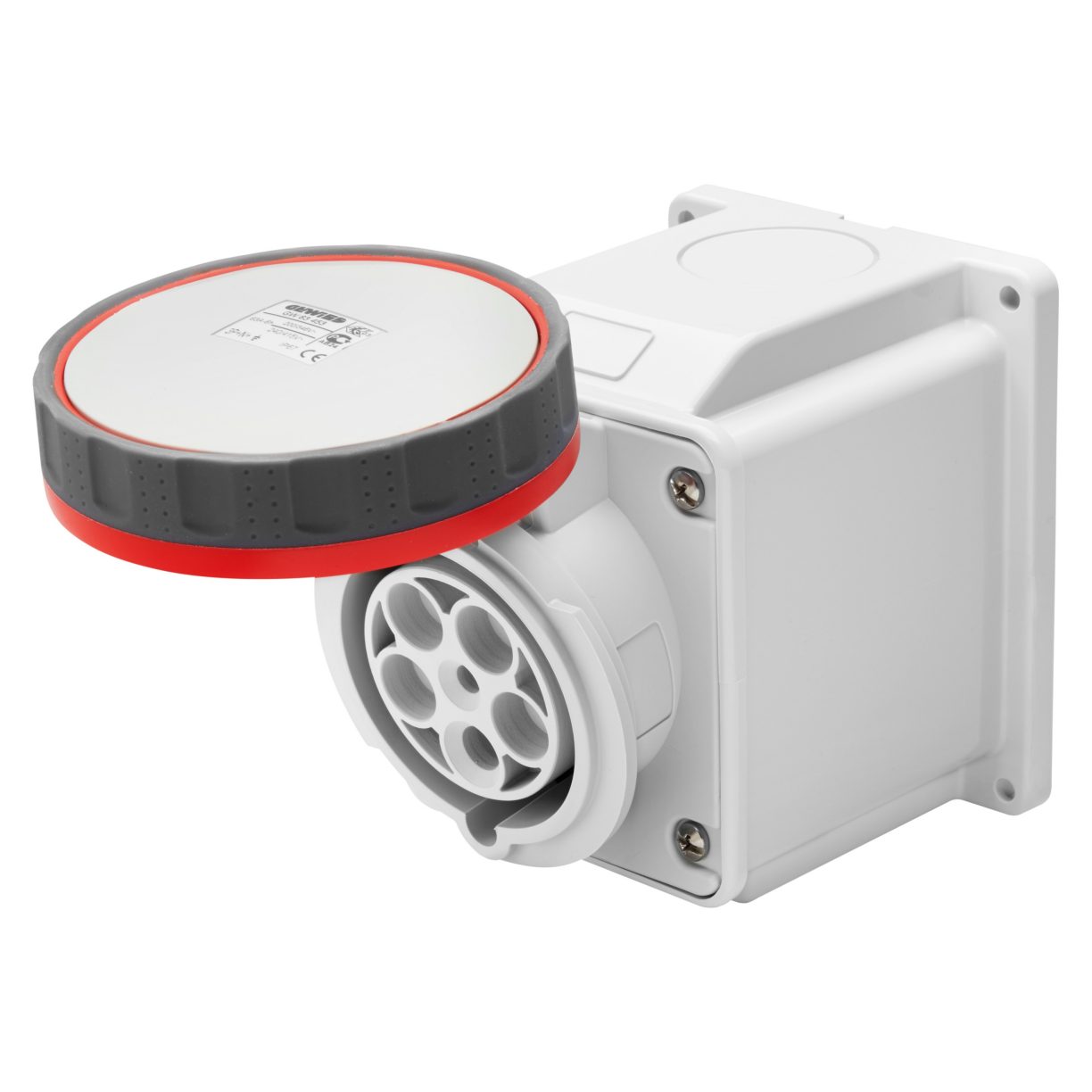

Gewiss GEW.63 A 380 V 4-pin IP67 Sk
Gewiss · Gewiss S.p.A.
GEW.63A 380V 4PIN IP67 SK
- KEW code
- GW63452
- Brand
- Gewiss
- Manufacturer
- Gewiss S.p.A.
- MPN
- GW63452
- Category
- Plugs & Adaptors
- Specification
- Rated current: 63 A. Electrical configuration: 3P+E, four main contacts in total: three phases plus protective earth; no neutral. Rated voltage: 380–415 V AC at 50/60 Hz. Ingress protection: IP67. Mechanical impact resistance: IK08. Clock position: 6H. Product type: 10° angled surface-mounting socket-outlet. Wiring: screw terminals for 6–16 mm² flexible conductors or 6–25 mm² rigid conductors. Operating temperature: −25°C to +55°C. Pilot contact: included for electrical interlock applications.
- Feature
- 63A industrial socket-outlet.
- Feature
- 3P+E configuration: four main contacts, three phases plus protective earth.
- Feature
- No neutral contact: not a 4P+E / 3P+N+E model.
- Feature
- 380–415V AC, 50/60Hz.
- Feature
- IP67 protection and IK08 impact resistance.
- Feature
- 6H earth position and 10° angled surface-mount design.
- Feature
- Screw wiring with a pilot contact for electrical interlock applications.
