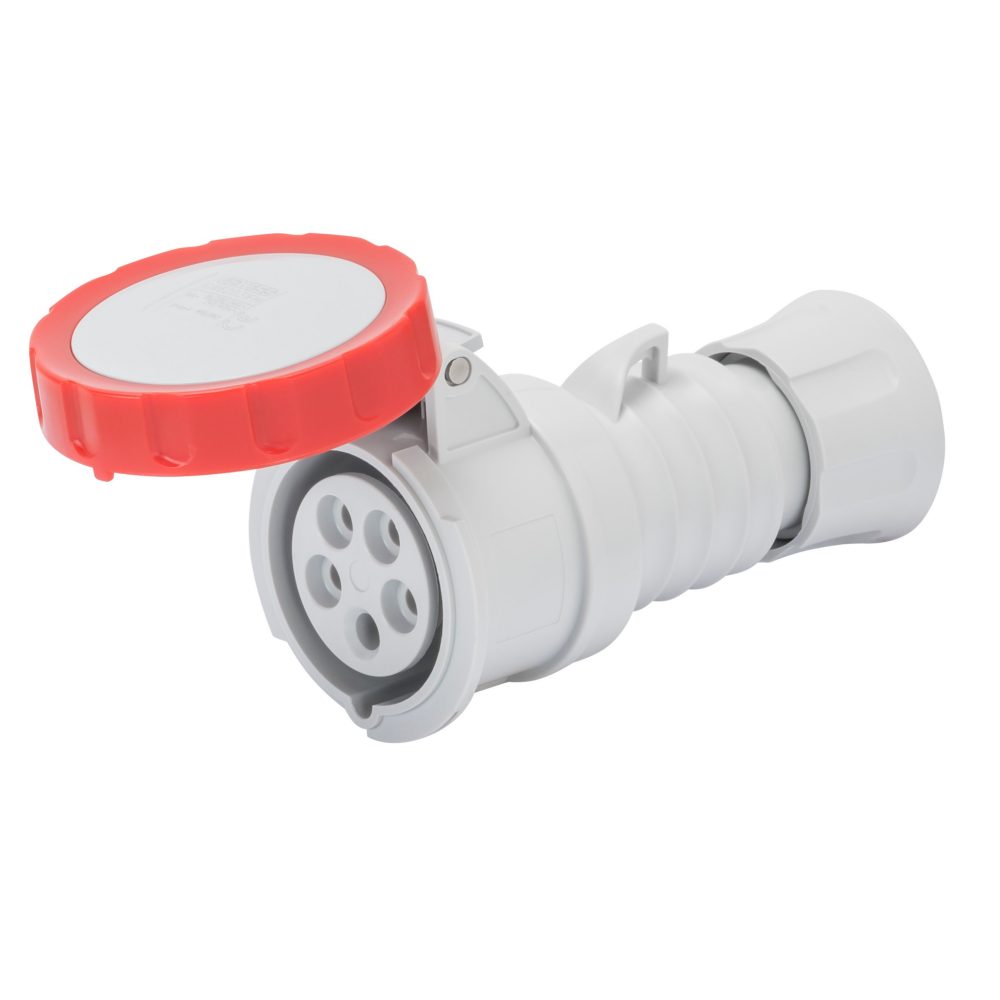

Gewiss GW62031 16 A 3P+N+E 380–415 V red straight industrial connector, IP66/IP67/IP68/IP69
Gewiss
In stock
A red 16 A 3P+N+E 380–415 V straight industrial connector with IP66/IP67/IP68/IP69 protection.
The Gewiss GW62031 is a straight industrial connector for 16 A 3P+N+E connections at 380–415 V. It has red coding, IP66/IP67/IP68/IP69 ingress protection, a 6h earth-contact position and screw wiring. Match the pole pattern, voltage, clock position and cable termination to the mating equipment before ordering.
- KEW code
- GW62031
- Brand
- Gewiss
- Manufacturer
- Gewiss
- MPN
- GW62031
- Category
- Plugs & Adaptors
- Specification
- Manufacturer: Gewiss. Manufacturer part number: GW62031. Product type: straight industrial connector. Range: IEC 309 HP. Ingress protection: IP66/IP67/IP68/IP69. Electrical rating: 3P+N+E 16 A 380-415 V 50/60Hz. Colour code: red. Clock position: 6h. Termination: screw wiring.
- Feature
- Straight industrial connector.
- Feature
- Ingress protection: IP66/IP67/IP68/IP69.
- Feature
- Electrical rating: 3P+N+E 16 A 380-415 V 50/60Hz.
- Feature
- Colour code: red.
- Feature
- Clock position: 6h.
- Feature
- Termination: screw wiring.
