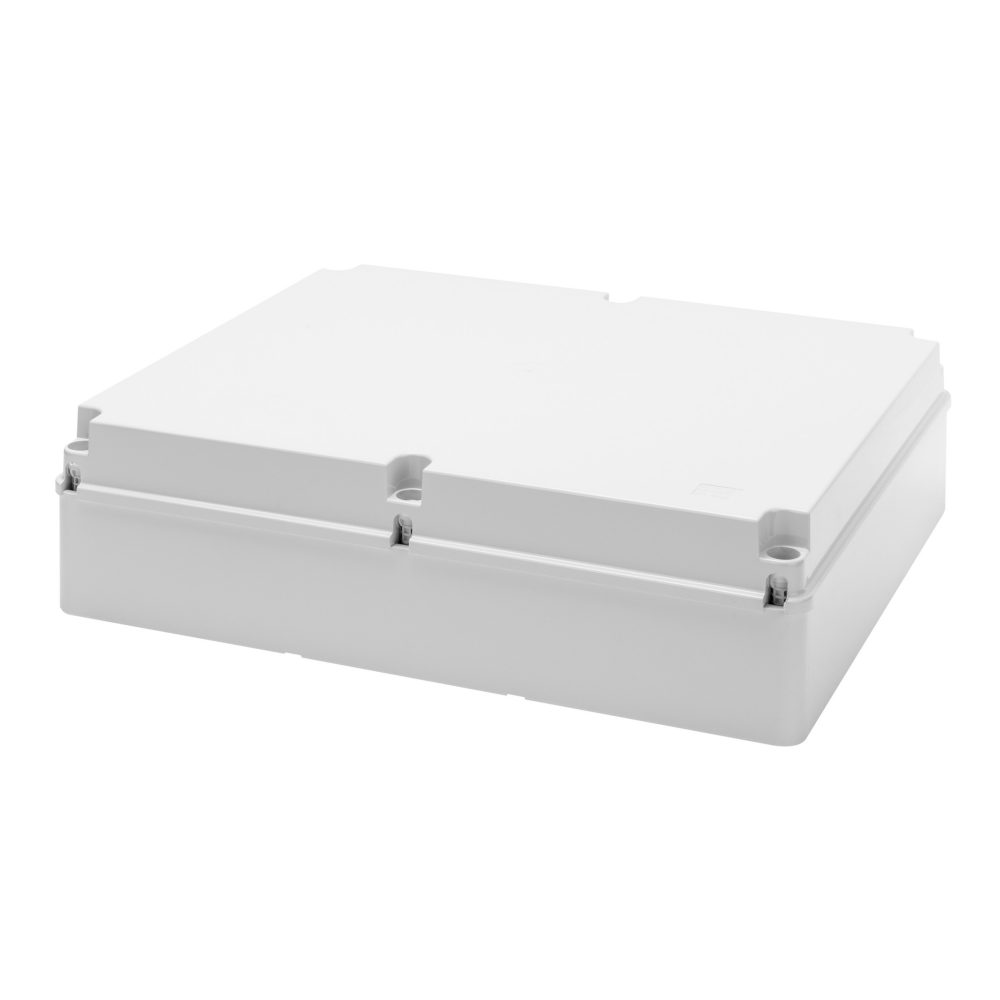

Gewiss IP56 surface-mounted junction box, 460 × 380 × 120 mm

Gewiss

Low stock

Gewiss IP56 surface-mounted junction box with smooth walls and a low screwed lid; internal dimensions are 460 × 380 × 120 mm.

For surface-mounted wiring junctions, this Gewiss 44 CE box has smooth walls and a low screwed lid. Its internal space measures 460 × 380 × 120 mm, with a maximum possible hole diameter of 48 mm. Use suitable cable entries and accessories to retain the stated IP56 protection.

KEW code

GW44211

Brand

Gewiss

Manufacturer

Gewiss

MPN

GW44211

Category

Enclosures & Boxes

Specification

Range: Gewiss 44 CE. Type: Surface-mounted junction box. Internal dimensions: 460 × 380 × 120 mm. Material: GWPLAST 75 technopolymer. Colour: Grey, RAL 7035. Ingress protection: IP56. Impact resistance: IK08. Lid: Low, screwed. Lid screws: 6 insulating, sealable, hinged. Maximum possible hole diameter: 48 mm. Operating temperature: −25 °C to +60 °C.

Feature

460 × 380 × 120 mm internal dimensions.

Feature

Smooth walls and low screwed lid.

Feature

IP56 ingress protection and IK08 impact resistance.

Feature

Grey RAL 7035 GWPLAST 75 technopolymer.
