KEW catalogue

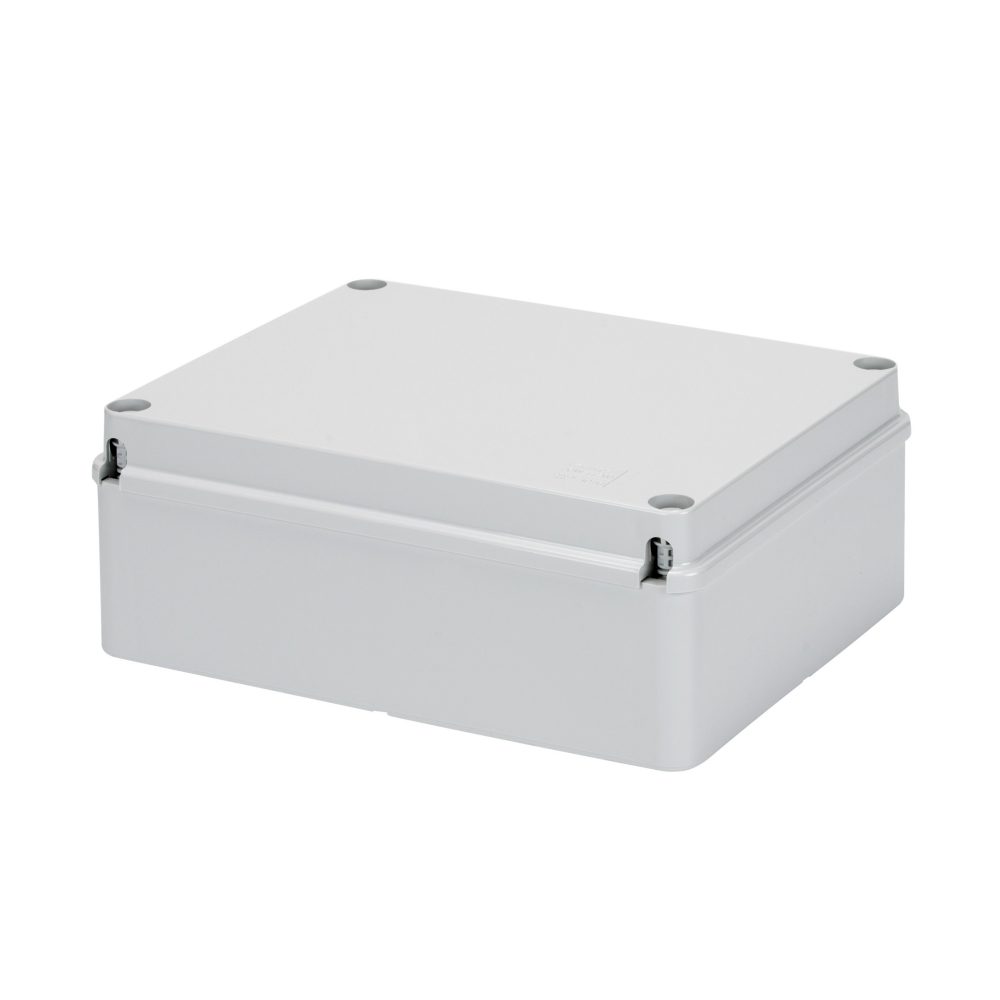

Gewiss Durable sealed box 190 × 140 × 70 mm
Gewiss
No stock / backorder
Grey Gewiss GW44207 44 CE junction box with smooth walls, a low plain screwed lid and IP56 protection in a 190 × 140 × 70 mm format.
The Gewiss GW44207 is a 190 × 140 × 70 mm surface-mounted junction box from the 44 CE range. Its halogen-free GWPLAST 75 technopolymer enclosure is grey RAL 7035 with smooth walls and a low plain screwed lid. It provides IP56 protection and IK08 impact resistance; the manufacturer lists a maximum possible hole diameter of 37 mm.
- KEW code
- GW44207
- Brand
- Gewiss
- Manufacturer
- Gewiss
- MPN
- GW44207
- Category
- Enclosures & Boxes
- Specification
- Product type: Surface-mounted watertight junction box. Manufacturer model: Gewiss GW44207. Range: Gewiss 44 CE. Internal dimensions (L × H × D): 190 × 140 × 70 mm. Material: GWPLAST 75 technopolymer; halogen-free to EN 60754-2. Colour: Grey, RAL 7035. Ingress protection: IP56. Impact resistance: IK08. Cable entry construction: Smooth walls; manufacturer-listed maximum possible hole diameter Ø37 mm. Lid: Low, plain, screwed; 4 insulating, sealable hinged lid screws. Insulation class: II according to IEC 61140. Glow-wire test: 650 °C; operating temperature −25 °C to +60 °C.
- Feature
- 190 × 140 × 70 mm GWPLAST 75 technopolymer enclosure.
- Feature
- IP56 protection and IK08 impact resistance.
- Feature
- Smooth walls with a manufacturer-listed maximum possible hole diameter of Ø37 mm.
- Feature
- Low plain screwed lid with 4 insulating, sealable hinged screws.
- Feature
- Grey RAL 7035, halogen-free material and Class II insulation.
