Gewiss Small sealed box 120 × 80 × 50 mm
Gewiss
In stock

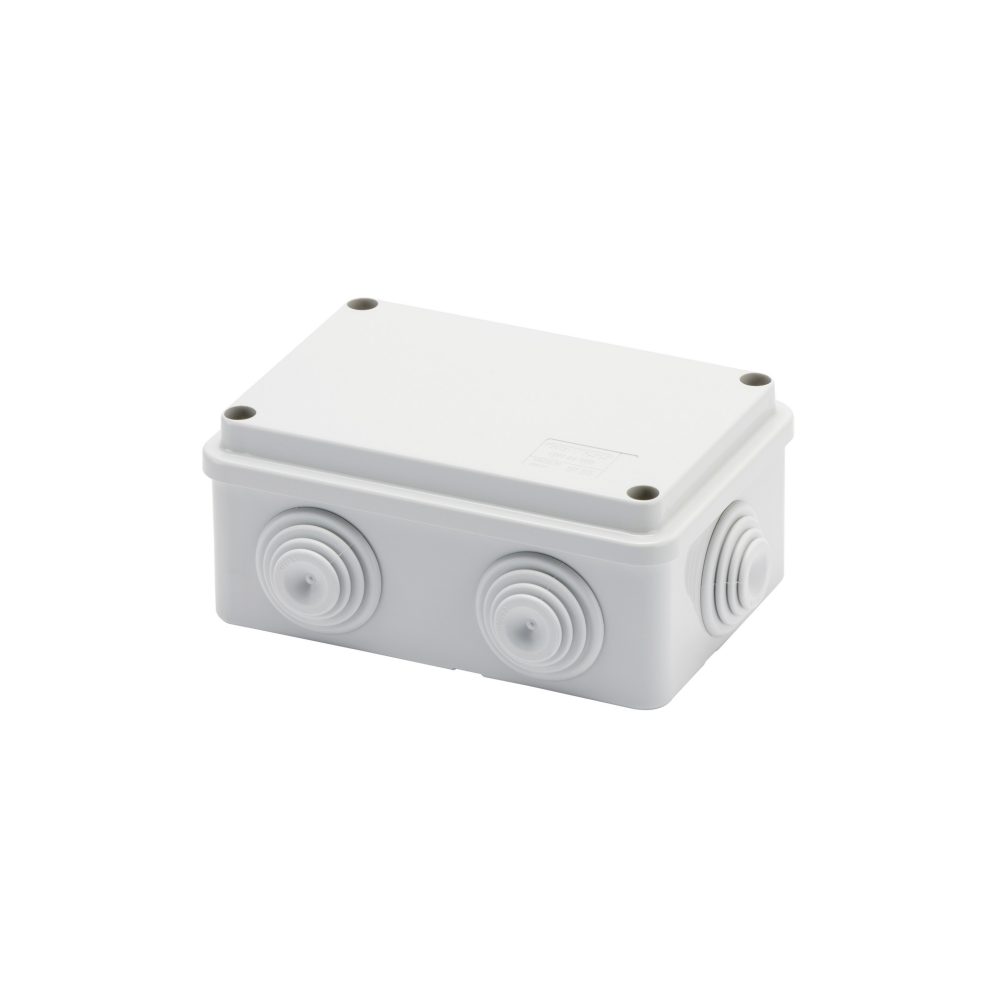

Grey Gewiss GW44005 44 CE junction box with a low plain screwed lid, quick-entry cable-gland walls and IP55 protection in a 120 × 80 × 50 mm format.
The Gewiss GW44005 is a 120 × 80 × 50 mm surface-mounted junction box from the 44 CE range. It uses halogen-free GWPLAST 75 technopolymer in grey RAL 7035, with a low plain screwed lid and six quick-entry cable-gland openings up to 29 mm. It provides IP55 protection and IK08 impact resistance when correctly installed.
- KEW code
- GW44005
- Brand
- Gewiss
- Manufacturer
- Gewiss
- MPN
- GW44005
- Category
- Enclosures & Boxes
- Specification
- Product type: Surface-mounted watertight junction box. Manufacturer model: Gewiss GW44005. Range: Gewiss 44 CE. Internal dimensions (L × H × D): 120 × 80 × 50 mm. Material: GWPLAST 75 technopolymer; halogen-free to EN 60754-2. Colour: Grey, RAL 7035. Ingress protection: IP55. Impact resistance: IK08. Cable entry construction: Walls with quick-entry cable glands/cones; 6 holes, maximum Ø29 mm. Lid: Low, plain, screwed; 4 stainless-steel lid screws. Insulation class: II according to IEC 61140. Glow-wire test: 650 °C; operating temperature −25 °C to +60 °C.
- Feature
- 120 × 80 × 50 mm GWPLAST 75 technopolymer enclosure.
- Feature
- IP55 protection and IK08 impact resistance.
- Feature
- Six quick-entry cable-gland openings, maximum Ø29 mm.
- Feature
- Low plain screwed lid with 4 stainless-steel screws.
- Feature
- Grey RAL 7035, halogen-free material and Class II insulation.
