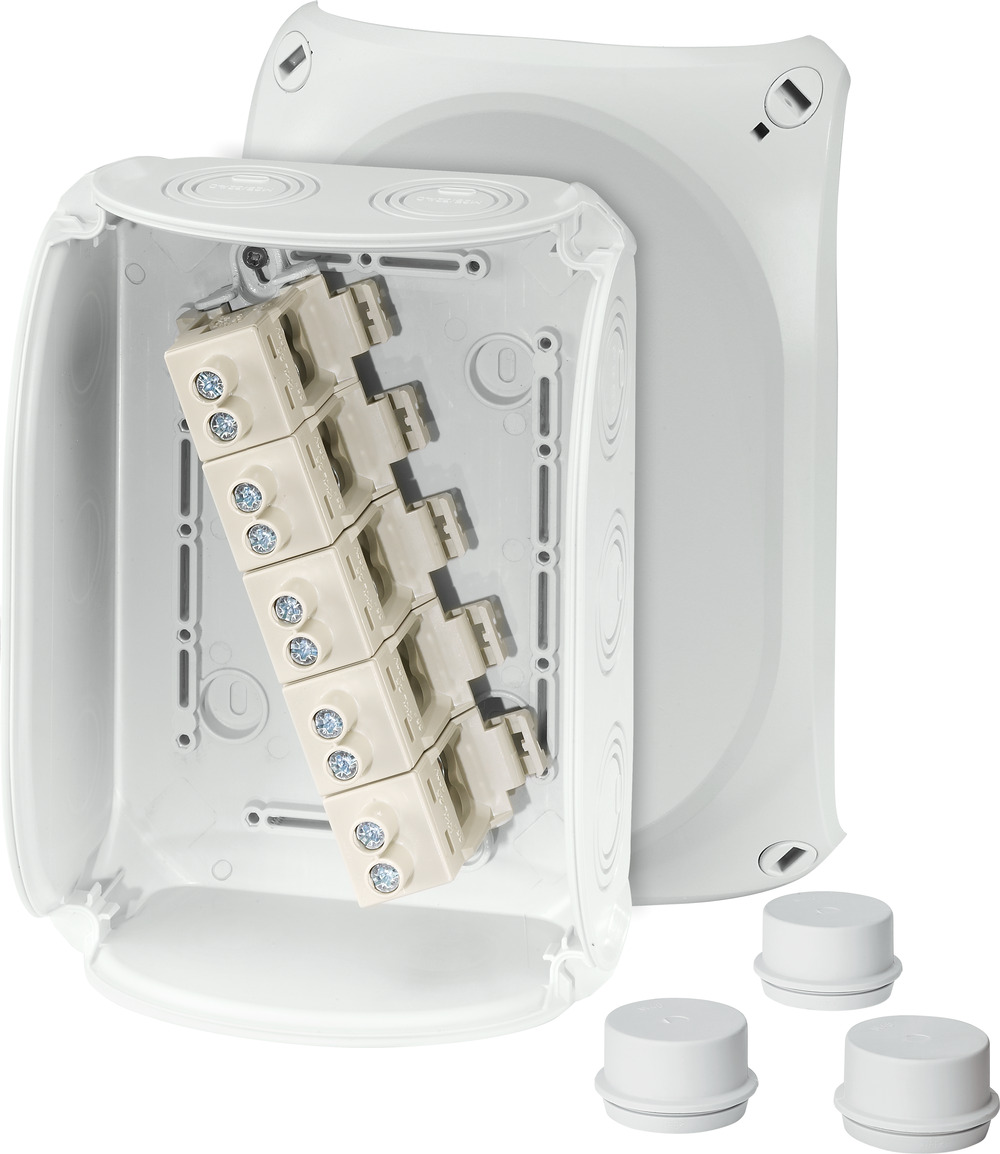

Hensel Junction box 10-16sq 155 × 210 × 92 mm
Hensel · Gustav Hensel
HENSEL JUNCTION BOX 10-16SQ
- KEW code
- DK1616G
- Brand
- Hensel
- Manufacturer
- Gustav Hensel
- MPN
- DK1616G
- Category
- Enclosures & Boxes
- Specification
- - Cable junction box for normal and protected outd: Cable junction box for normal and protected outdoor environments. - 155 x 210 x 92 mm enclosure: 155 x 210 x 92 mm enclosure. - Ip66 protection: IP66 protection. - Nominal conductor range 10 to 16 mm2: Nominal conductor range 10 to 16 mm2. - Metric knockouts and branch terminal arrangement: Metric knockouts and branch terminal arrangement. - Rated current 102 a: Rated current 102 A.
- Feature
- IP66 protection.
- Feature
- 155 x 210 x 92 mm size.
- Feature
- 10 to 16 mm2 conductor range.
- Feature
- Metric knockouts.
- Feature
- Grey polycarbonate housing.
