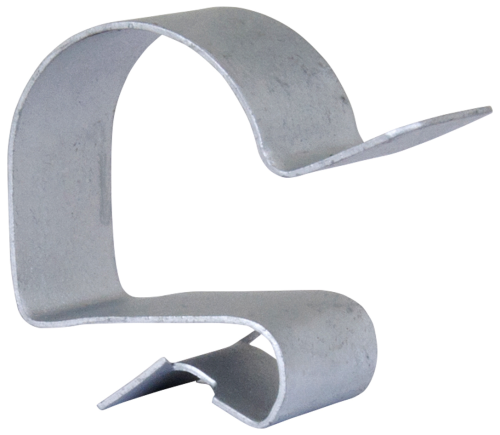

Cable Run Clip — 19–24 mm Cable, 2–4 mm Flange
Spring-steel cable run clip for quick fixing a cable to a compatible steel beam flange without drilling. Both the stated cable range and flange thickness must fit the installation; use for static loads only.
- KEW code
- CR219
- MPN
- CR219
- Category
- Cable & Wire
- Specification
- Product type: spring-steel cable run clip. Cable diameter range: 19 mm to 24 mm. Beam-flange thickness: 2 mm to 4 mm. Material: spring steel type CS70 with Delta-Tone 9000 surface treatment. Application: quick fixing to a compatible steel flange; static loads only. Image: Representative product-family image; refer to the listed dimensions.
- Feature
- For 19–24 mm cable.
- Feature
- Fits a 2–4 mm beam flange.
- Feature
- Spring-steel attachment.
- Feature
- For static loads only.
- Data sheet
- Open technical sheet
