Cabur TEC.6/O 6SQ Earth DIN Rail Termin
Cabur · Cabur

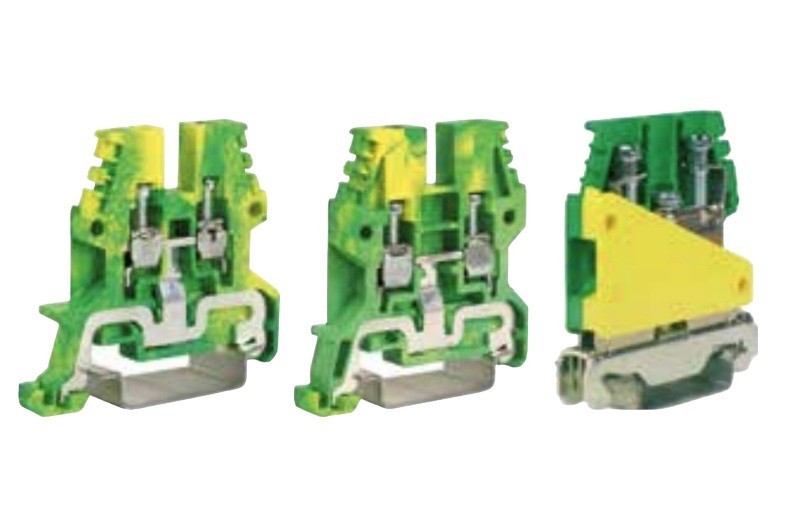

Cabur TEC.6/O yellow-green protective-earth terminal block for 6 mm² conductors in DIN-rail panel wiring.
- KEW code
- CBD6/E
- Brand
- Cabur
- Manufacturer
- Cabur
- MPN
- TEC.6/O
- Category
- Wiring Accessories
- Specification
- Product type: single-level protective-earth screw terminal block. Series: Cabur TEC. Rated cross-section: 6 mm². Conductor capacity: flexible and rigid 0.5–10 mm²; ferrule 6 mm² – WP60/20. Standard: IEC EN 60947-7-2. Insulation stripping length: 10 mm. Tightening torque: 0.8 / 1.4 Nm. Width: 8 mm; length: 44 mm. Height on TH35-7.5 / TH35-15 / G32: 52 / 60 / – mm. Insulation material: polyamide UL94V-0. Colour: yellow-green.
- Feature
- 6 mm² protective-earth terminal block.
- Feature
- Yellow-green body for clear earth identification.
- Feature
- 0.5–10 mm² flexible and rigid conductor capacity.
- Feature
- Screw-clamp connection for reliable grounding.
- Feature
- DIN-rail mounting for standard panel layouts.
