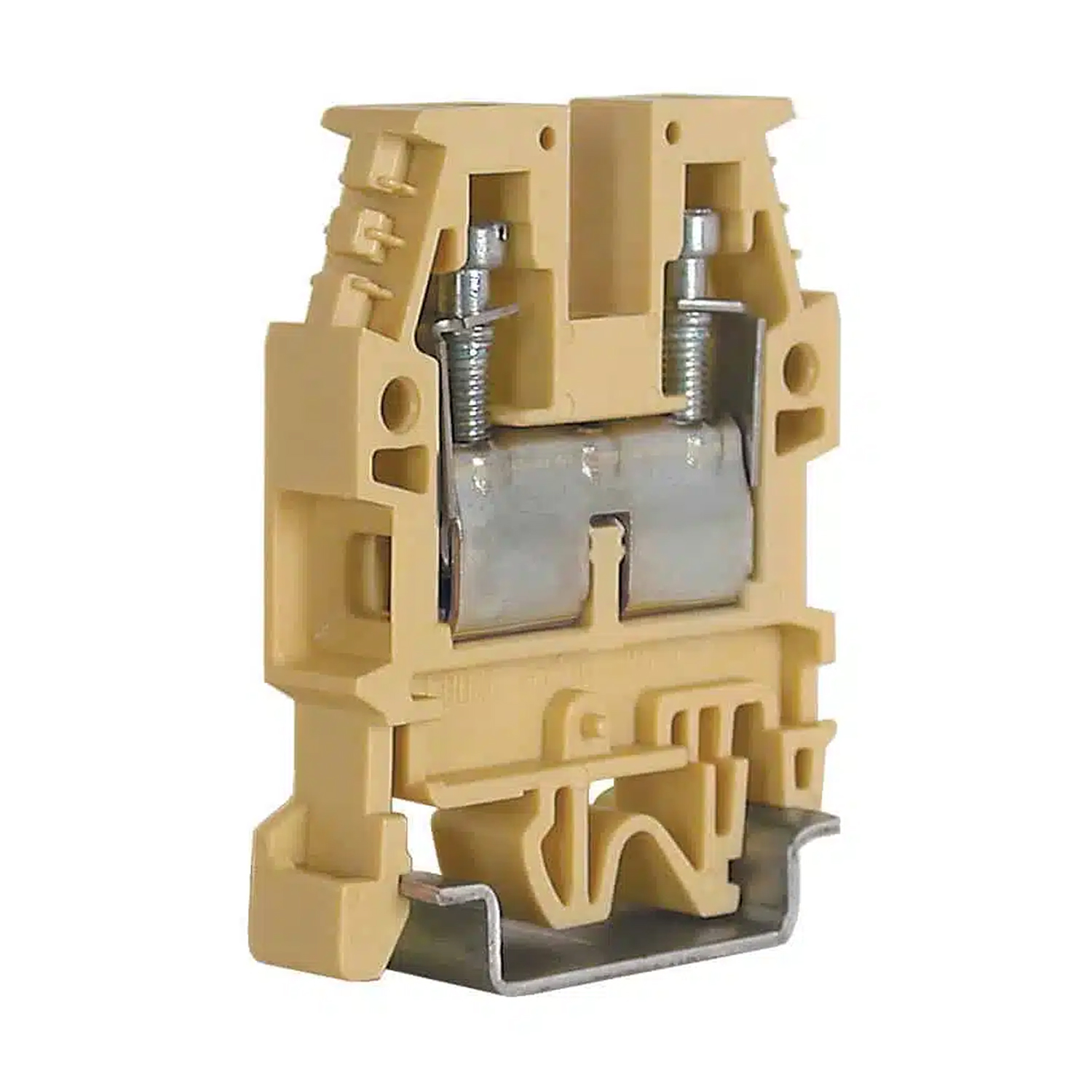

Cabur CBD.6 6 mm CLIP-ON Terminals
Cabur · Cabur
Cabur CBD.6 single-level feed-through terminal block for 6 mm² conductors in DIN-rail panel wiring.
- KEW code
- CBD6
- Brand
- Cabur
- Manufacturer
- Cabur
- MPN
- CBD.6
- Category
- Wiring Accessories
- Specification
- Product type: single-level feed-through screw terminal block. Series: Cabur CBD. Rated cross-section: 6 mm². Conductor capacity: flexible and rigid 0.5–10 mm²; ferrule 6 mm² WP60/20. Maximum voltage: 1000 V AC/DC. Maximum current: 41 A at rated cross-section. Insulation stripping length: 14 mm. Tightening torque: 0.8 / 1.4 Nm. Width: 8 mm; length: 44 mm. Height on TH35-7.5 / TH35-15 / G32: 52 / 60 / 56 mm. Insulation material: polyamide UL94-V0. Colour: beige.
- Feature
- 6 mm² feed-through terminal block.
- Feature
- 0.5–10 mm² flexible and rigid conductor capacity.
- Feature
- 1000 V AC/DC maximum voltage and 41 A rated current.
- Feature
- Screw-clamp connection on standard DIN rail.
- Feature
- Beige polyamide UL94-V0 insulating body.
