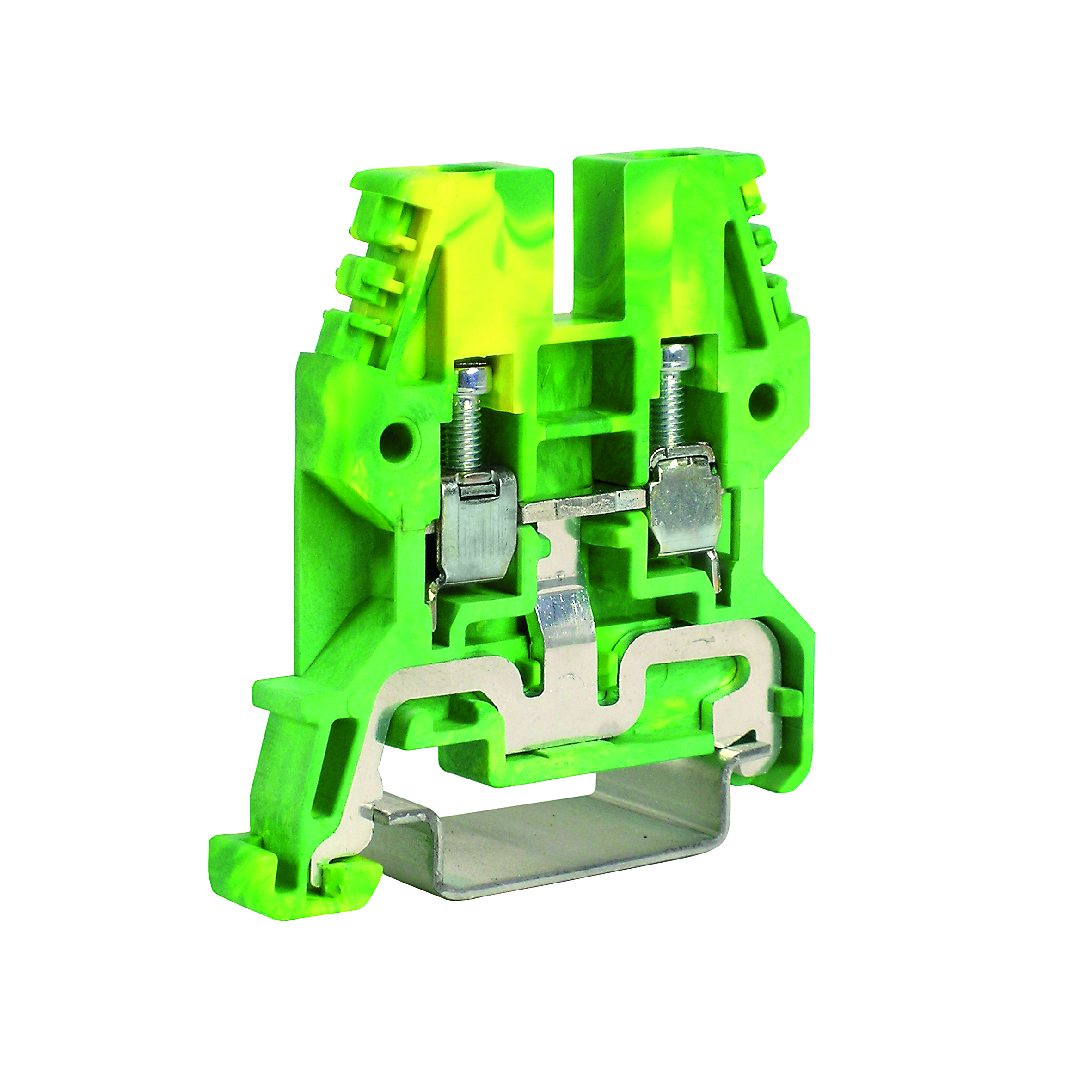

Cabur TEO.4 4SQ Mm Earth Terminals
Cabur · Cabur
Cabur TEO.4 yellow-green protective-earth terminal block for 4 mm² conductors in DIN-rail panel wiring.
- KEW code
- CBD4/E
- Brand
- Cabur
- Manufacturer
- Cabur
- MPN
- TEO.4
- Category
- Wiring Accessories
- Specification
- Product type: single-level protective-earth screw terminal block. Series: Cabur TE. Rated cross-section: 4 mm². Conductor capacity: flexible and rigid 0.2–6 mm²; ferrule 4 mm² – WP40/16. Standard: IEC EN 60947-7-2. Maximum current: 32 A (ATEX/IEC Ex rated cross-section). Insulation stripping length: 14 mm. Tightening torque: 0.5 / 1.2 Nm. Width: 6.5 mm; length: 50 mm. Height on TH35-7.5 / TH35-15 / G32: 52 / 60 / – mm. Insulation material: polyamide UL94V-0. Colour: yellow-green.
- Feature
- 4 mm² protective-earth terminal block.
- Feature
- Yellow-green body for clear earth identification.
- Feature
- 0.2–6 mm² flexible and rigid conductor capacity.
- Feature
- Screw-clamp connection for reliable grounding.
- Feature
- DIN-rail mounting for standard panel layouts.
