Cabur CBD.4 (Ex)i Cbd4 Blue DIN Rail Termns
Cabur · Cabur

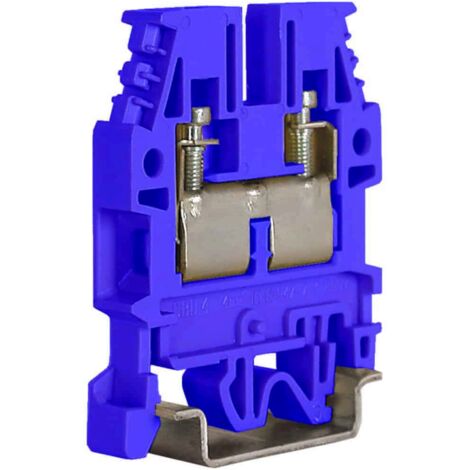

Cabur CBD.4 blue intrinsic-safety feed-through terminal block for 4 mm² conductors in DIN-rail panel wiring.
- KEW code
- CBD4/B
- Brand
- Cabur
- Manufacturer
- Cabur
- MPN
- CBD.4 (Ex)i
- Category
- Wiring Accessories
- Specification
- Product type: single-level feed-through screw terminal block. Series: Cabur CBD. Rated cross-section: 4 mm². Conductor capacity: flexible and rigid 0.5–6 mm²; ferrule 4 mm² WP40/16. Maximum voltage: 1000 V AC/DC. Maximum current: 32 A at rated cross-section. Insulation stripping length: 14 mm. Tightening torque: 0.5 / 1.2 Nm. Width: 6.5 mm; length: 44 mm. Height on TH35-7.5 / TH35-15 / G32: 52 / 60 / 56 mm. Insulation material: polyamide UL94-V0. Colour: blue.
- Feature
- 4 mm² feed-through terminal block.
- Feature
- Blue Ex variant of the CBD family.
- Feature
- 0.5–6 mm² flexible and rigid conductor capacity.
- Feature
- 1000 V AC/DC maximum voltage and 32 A rated current.
- Feature
- Screw-clamp connection on standard DIN rail.
