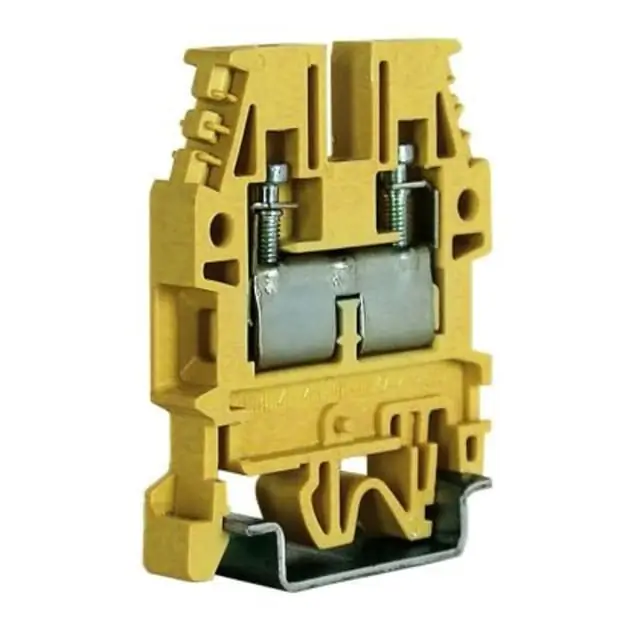

Cabur CBD.4 4SQ Mm ST/TRUE DIN R terminal

Cabur · Cabur

Cabur CBD.4 single-level feed-through terminal block for 4 mm² conductors in DIN-rail panel wiring.

KEW code

CBD4/2

Brand

Cabur

Manufacturer

Cabur

MPN

CBD.4

Category

Wiring Accessories

Specification

Product type: Single-level feed-through terminal block. Series: CBD.4. Rated cross-section: 4 mm². Flexible conductor range: 0.5–6 mm². Rigid conductor range: 0.5–6 mm². Ferrule: 4 mm² – WP40/16. Maximum voltage: 1000 V AC/DC. Maximum current: 32 A. Service temperature: -40 °C to +110 °C. Impulse withstand voltage / pollution degree: 12 kV / 3. Insulation stripping length: 14 mm. Tightening torque: 0.5 / 1.2 Nm. Width (pitch): 6.5 mm. Length: 44 mm. Mounted height TH35-7.5 / TH35-15 / G32: 52 / 60 / 56 mm. Insulation material: Polyamide UL94-V0.

Feature

4 mm² feed-through terminal block.

Feature

0.5–6 mm² flexible and rigid conductor range.

Feature

32 A, 1000 V AC/DC rating.

Feature

Mounts on TH35-7.5, TH35-15 and G32 rails.

Feature

Polyamide UL94-V0 insulating body.
