Cabur TEC.35/O 35 mm Dr Earth Terminal
Cabur · Cabur

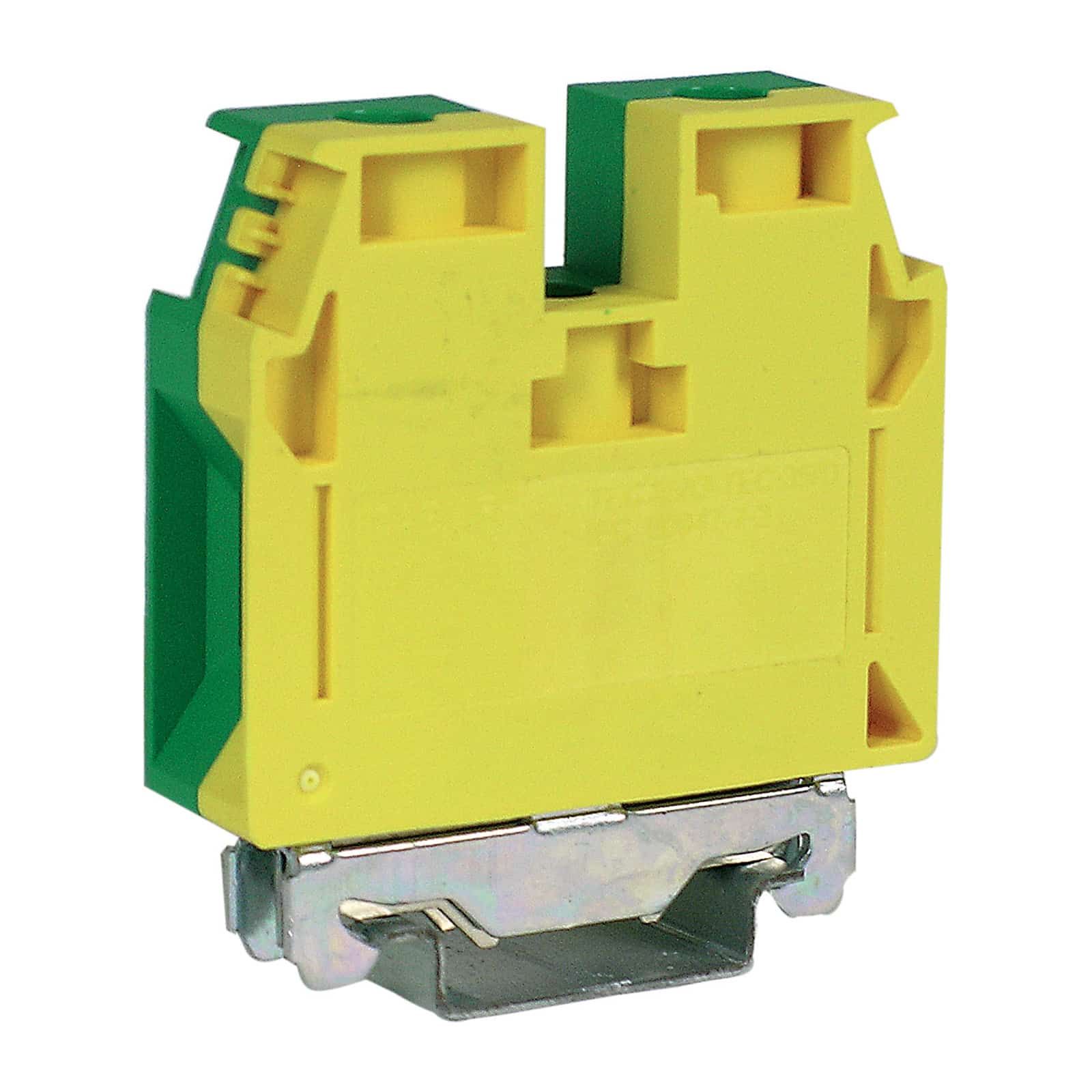

Cabur TO320 yellow-green single-level protective-earth terminal block for DIN-rail panel wiring with a 35 mm² rated cross-section and screw-clamp connection.
- KEW code
- CBD35/E
- Brand
- Cabur
- Manufacturer
- Cabur
- MPN
- TEC.35/O
- Category
- Wiring Accessories
- Specification
- Product type: single-level protective-earth screw terminal block. Series: Cabur TEC. Rated cross-section: 35 mm². Conductor capacity: flexible 2.5–50 mm²; rigid 2.5–50 mm²; ferrule –. Standard: IEC EN 60947-7-2. Insulation stripping length: 18 mm. Tightening torque: 2.5 / 5 Nm. Width: 16 mm; length: 56 mm. Height on TH35-7.5 / TH35-15 / G32: 63 / 71 / – mm. Insulation material: polyamide UL94V-0. Colour: yellow-green.
- Feature
- 35 mm² protective-earth terminal block.
- Feature
- Yellow-green body for clear earth identification.
- Feature
- 2.5–50 mm² flexible and 2.5–50 mm² rigid conductor capacity.
- Feature
- Screw-clamp connection for reliable grounding.
- Feature
- DIN-rail mounting for standard panel layouts.
