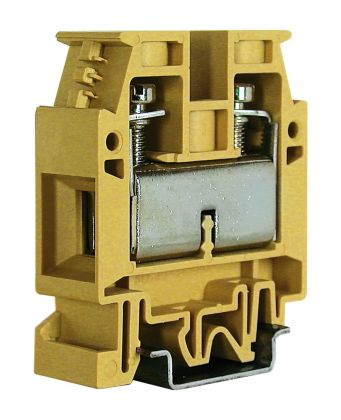

Cabur CBD.35 35 mm CLIP-ON Terminals
Cabur · Cabur
Cabur CB610 beige single-level feed-through terminal block for DIN-rail panel wiring with a 35 mm² rated cross-section and screw-clamp connection.
- KEW code
- CBD35
- Brand
- Cabur
- Manufacturer
- Cabur
- MPN
- CBD.35
- Category
- Wiring Accessories
- Specification
- Product type: single-level feed-through screw terminal block. Series/model: Cabur CBD.35 / CB610. Rated cross-section: 35 mm². Conductor capacity: flexible 0.5–35 mm²; rigid 0.5–50 mm²; ferrule 35 mm² – WP350/30. Maximum voltage: 1000 V AC/DC. Maximum current: 125 A at rated cross-section. Insulation stripping length: 20 mm. Tightening torque: 2 / 3.5 Nm. Width: 16 mm; length: 52 mm; height on TH35-7.5 / TH35-15 / G32: 60 / 68 / 64 mm. Insulation material: polyamide UL94V-0. Colour: beige.
- Feature
- 35 mm² feed-through terminal block.
- Feature
- Cabur CB610 / CBD.35 beige variant.
- Feature
- 0.5–35 mm² flexible and 0.5–50 mm² rigid conductor capacity.
- Feature
- 1000 V AC/DC maximum voltage and 125 A rated current.
- Feature
- Screw-clamp connection on standard DIN rail.
