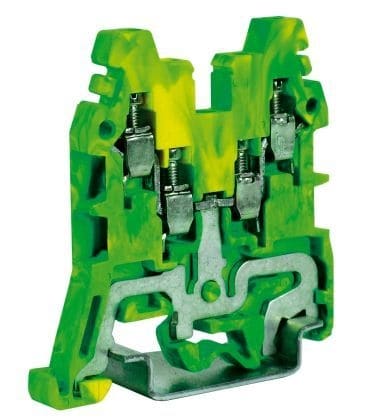

Cabur CBE.2 2.5 DIN Rail terminal Earth

Cabur · Cabur

Cabur CE110 yellow-green two-plus-two protective-earth terminal block for DIN-rail panel wiring with a 2.5 mm² rated cross-section and screw-clamp connection.

KEW code

CBD2/E

Brand

Cabur

Manufacturer

Cabur

MPN

CBE.2

Category

Wiring Accessories

Specification

Product type: single-level protective-earth screw terminal block. Series: Cabur TE. Rated cross-section: 2.5 mm². Conductor capacity: flexible and rigid 0.2–4 mm²; ferrule 2.5 mm² – WP25/14. Standard: IEC EN 60947-7-2. Connection points: 2+2. Insulation stripping length: 8 mm. Tightening torque: 0.4 / 0.5 Nm. Width: 5 mm; length: 50 mm. Height on TH35-7.5 / TH35-15 / G32: 52 / 60 / – mm. Insulation material: polyamide UL94V-0. Colour: yellow-green.

Feature

2.5 mm² protective-earth terminal block.

Feature

Yellow-green body for clear earth identification.

Feature

0.2–4 mm² flexible and rigid conductor capacity.

Feature

Screw-clamp connection for reliable grounding.

Feature

DIN-rail mounting for standard panel layouts.
