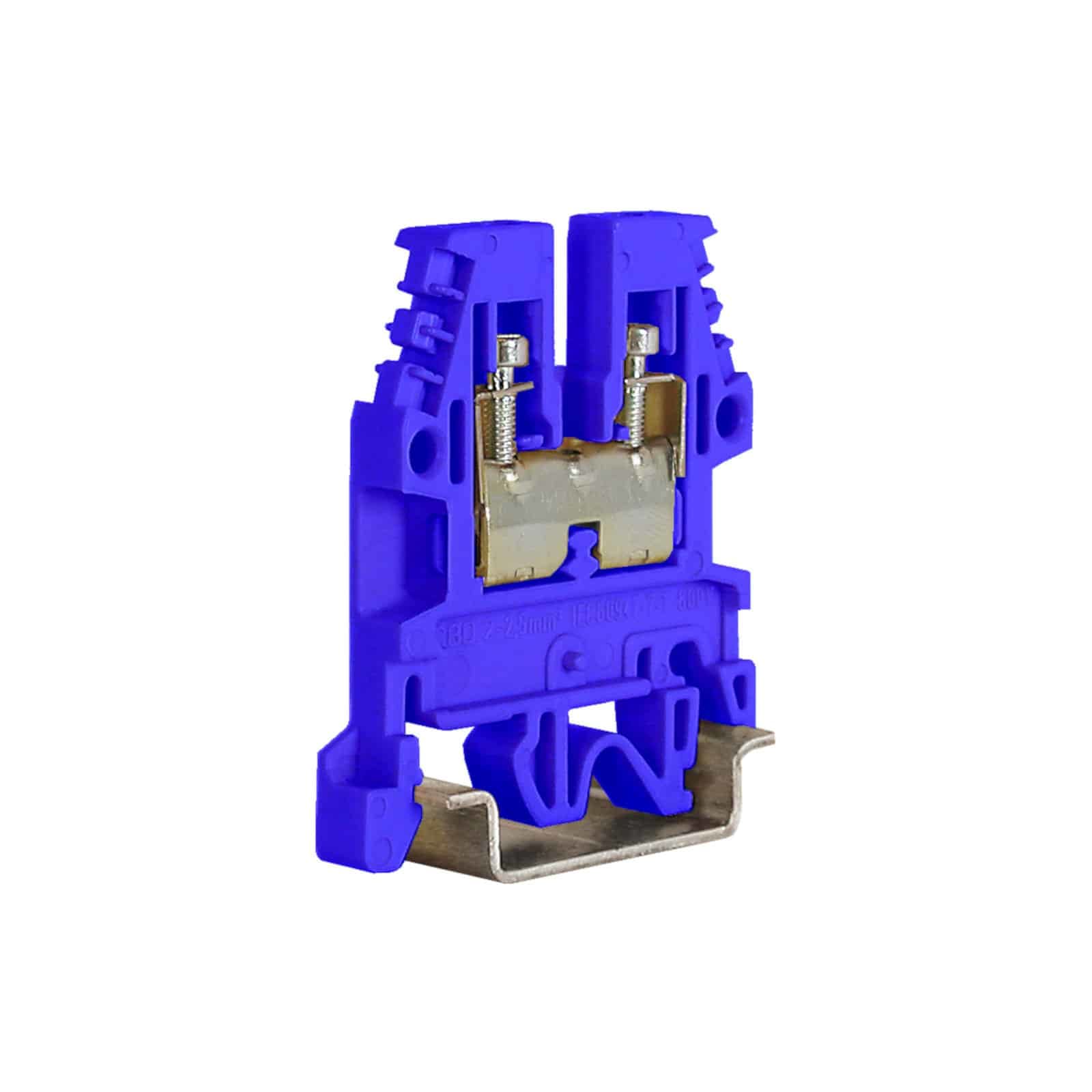

Cabur CBD.2 (Ex)i 2.5 mm DIN Rail terminal Blue
Cabur · Cabur
Cabur CBX12 blue single-level feed-through terminal block for DIN-rail panel wiring with a 2.5 mm² rated cross-section and screw-clamp connection.
- KEW code
- CBD2/B
- Brand
- Cabur
- Manufacturer
- Cabur
- MPN
- CBD.2 (Ex)i
- Category
- Wiring Accessories
- Specification
- Product type: single-level feed-through screw terminal block. Series: Cabur CBD. Rated cross-section: 2.5 mm². Conductor capacity: flexible and rigid 0.5–4 mm²; ferrule 2.5 mm² WP25/14. Maximum voltage: 690 V AC/DC. Maximum current: 24 A at rated cross-section. Insulation stripping length: 13 mm. Tightening torque: 0.4 / 0.8 Nm. Width: 5.5 mm; length: 40.5 mm. Height on TH35-7.5 / TH35-15 / G32: 47 / 55 / 51 mm. Insulation material: polyamide UL94-V0. Colour: blue.
- Feature
- 2.5 mm² feed-through terminal block.
- Feature
- Blue Ex variant of the CBD family.
- Feature
- 0.5–4 mm² flexible and rigid conductor capacity.
- Feature
- 690 V AC/DC maximum voltage and 24 A rated current.
- Feature
- Screw-clamp connection on standard DIN rail.
