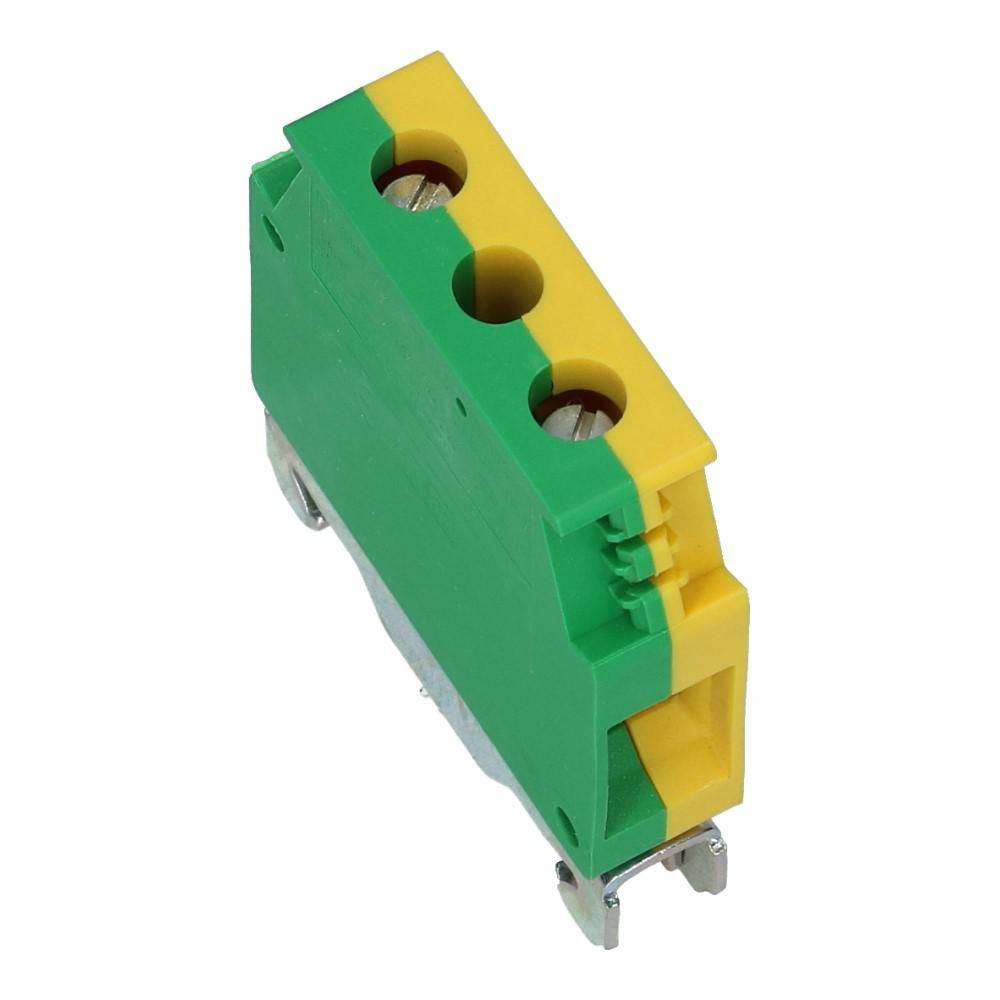

Cabur TE.16/O 16SQ DIN/R Earth Terminal
Cabur · Cabur
Cabur TO210 yellow-green single-level protective-earth terminal block for DIN-rail panel wiring with a 16 mm² rated cross-section and screw-clamp connection.
- KEW code
- CBD16/E
- Brand
- Cabur
- Manufacturer
- Cabur
- MPN
- TE.16/O
- Category
- Wiring Accessories
- Specification
- Product type: single-level protective-earth screw terminal block. Series: Cabur TE. Rated cross-section: 16 mm². Conductor capacity: flexible 0.5–16 mm²; rigid 0.5–25 mm²; ferrule 16 mm² – WP160/22. Standard: IEC EN 60947-7-2. Insulation stripping length: 13 mm. Tightening torque: 1.8 / 3 Nm. Width: 12 mm; length: 47 mm. Height on TH35-7.5 / TH35-15 / G32: 56 / 64 / – mm. Insulation material: polyamide UL94V-0. Colour: yellow-green.
- Feature
- 16 mm² protective-earth terminal block.
- Feature
- Yellow-green body for clear earth identification.
- Feature
- 0.5–16 mm² flexible and 0.5–25 mm² rigid conductor capacity.
- Feature
- Screw-clamp connection for reliable grounding.
- Feature
- DIN-rail mounting for standard panel layouts.
