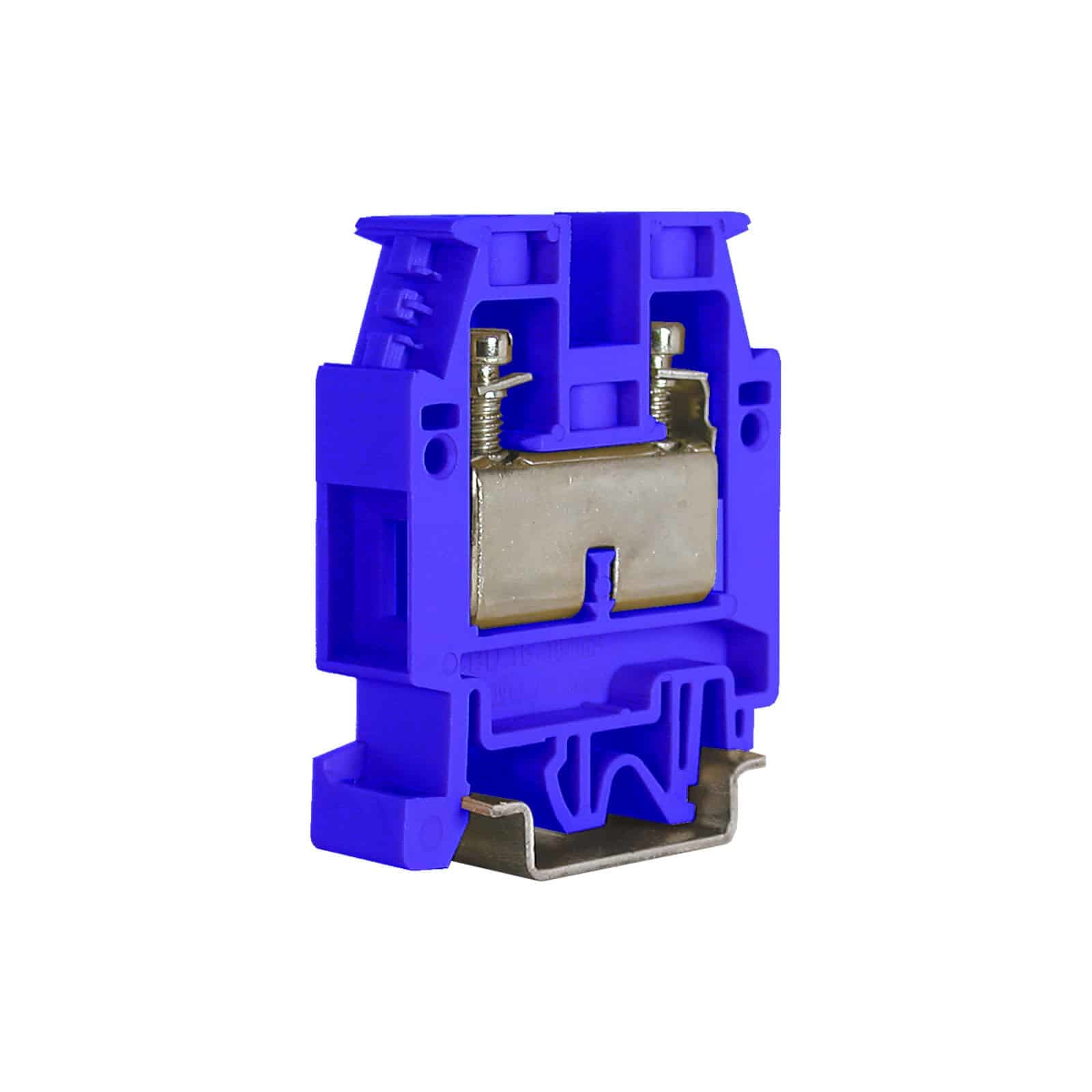

Cabur CBD.16 (Ex)i 16 mm Blue DIN Rail terminal
Cabur · Cabur
Cabur CBX52 blue single-level feed-through terminal block for DIN-rail panel wiring with a 16 mm² rated cross-section and screw-clamp connection.
- KEW code
- CBD16/B
- Brand
- Cabur
- Manufacturer
- Cabur
- MPN
- CBD.16 (Ex)i
- Category
- Wiring Accessories
- Specification
- Product type: single-level feed-through screw terminal block. Series: Cabur CBD. Rated cross-section: 16 mm². Conductor capacity: flexible and rigid 0.5–25 mm²; ferrule 16 mm² – WP160/22. Maximum voltage: 1000 V AC/DC. Maximum current: 76 A at rated cross-section. Insulation stripping length: 18 mm. Tightening torque: 1.8 / 3 Nm. Width: 12 mm; length: 47 mm. Height on TH35-7.5 / TH35-15 / G32: 57 / 65 / 61 mm. Insulation material: polyamide UL94V-0. Colour: blue.
- Feature
- 16 mm² feed-through terminal block.
- Feature
- Blue Cabur CBD family variant.
- Feature
- 0.5–25 mm² flexible and rigid conductor capacity.
- Feature
- 1000 V AC/DC maximum voltage and 76 A rated current.
- Feature
- Screw-clamp connection on standard DIN rail.
