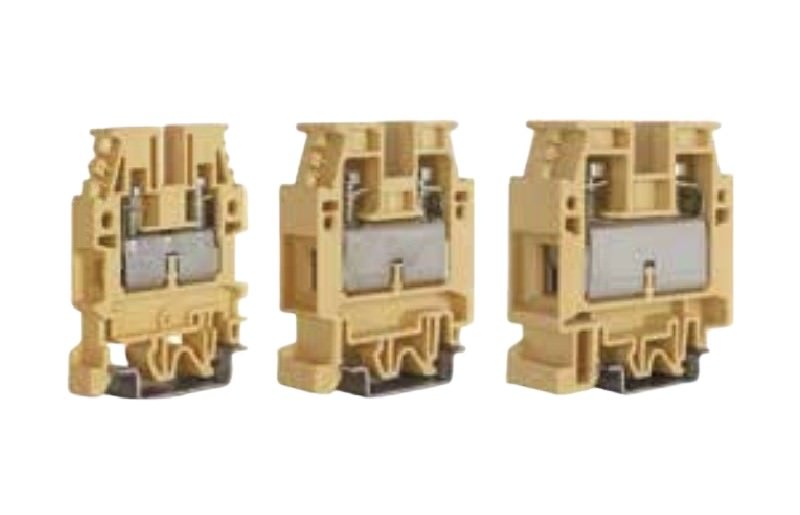

Cabur CBD.16 16 mm² beige DIN-rail terminal block
Cabur
In stock
Beige Cabur CBD.16 feed-through terminal block for clear DIN-rail panel wiring with 16 mm² conductors.
Cabur CBD.16 beige single-level feed-through terminal block for DIN-rail panel wiring with a 16 mm² rated cross-section and screw-clamp connection.
- KEW code
- CBD16
- Brand
- Cabur
- Manufacturer
- Cabur
- MPN
- CBD.16
- Category
- Wiring Accessories
- Specification
- Product type: single-level feed-through screw terminal block. Series: Cabur CBD. Rated cross-section: 16 mm². Conductor capacity: flexible and rigid 0.5–25 mm²; ferrule 16 mm² – WP160/22. Maximum voltage: 1000 V AC/DC. Maximum current: 76 A at rated cross-section. Insulation stripping length: 18 mm. Tightening torque: 1.8 / 3 Nm. Width: 12 mm; length: 47 mm. Insulation material: polyamide UL94V-0. Colour: beige.
- Feature
- 16 mm² feed-through terminal block.
- Feature
- Beige Cabur CBD family variant.
- Feature
- 0.5–25 mm² flexible and rigid conductor capacity.
- Feature
- 1000 V AC/DC maximum voltage and 76 A rated current.
- Feature
- Screw-clamp connection on standard DIN rail.
