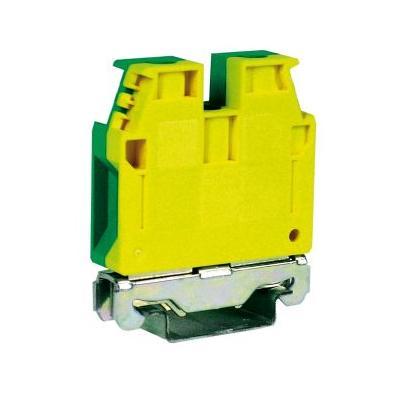

Cabur TEC.10/O 10SQ DIN Rail Earth terminal
Cabur · Cabur
10SQ DIN RAIL EARTH TERMN
- KEW code
- CBD10/E
- Brand
- Cabur
- Manufacturer
- Cabur
- MPN
- TEC.10/O
- Category
- Wiring Accessories
- Specification
- Product type: single-level protective-earth screw terminal block. Series: Cabur TEC. Rated cross-section: 10 mm². Conductor capacity: flexible 1.5–16 mm²; rigid 1.5–16 mm²; ferrule 10 mm² – WP100/21. Standard: IEC EN 60947-7-2. Insulation stripping length: 12 mm. Tightening torque: 1.2 / 1.9 Nm. Width: 10 mm; length: 44 mm. Height on TH35-7.5 / TH35-15 / G32: 52 / 60 / – mm. Insulation material: polyamide UL94V-0. Colour: yellow-green.
- Feature
- 10 mm² protective-earth terminal block.
- Feature
- Yellow-green body for clear earth identification.
- Feature
- 1.5–16 mm² flexible and 1.5–16 mm² rigid conductor capacity.
- Feature
- Screw-clamp connection for reliable grounding.
- Feature
- DIN-rail mounting for standard panel layouts.
