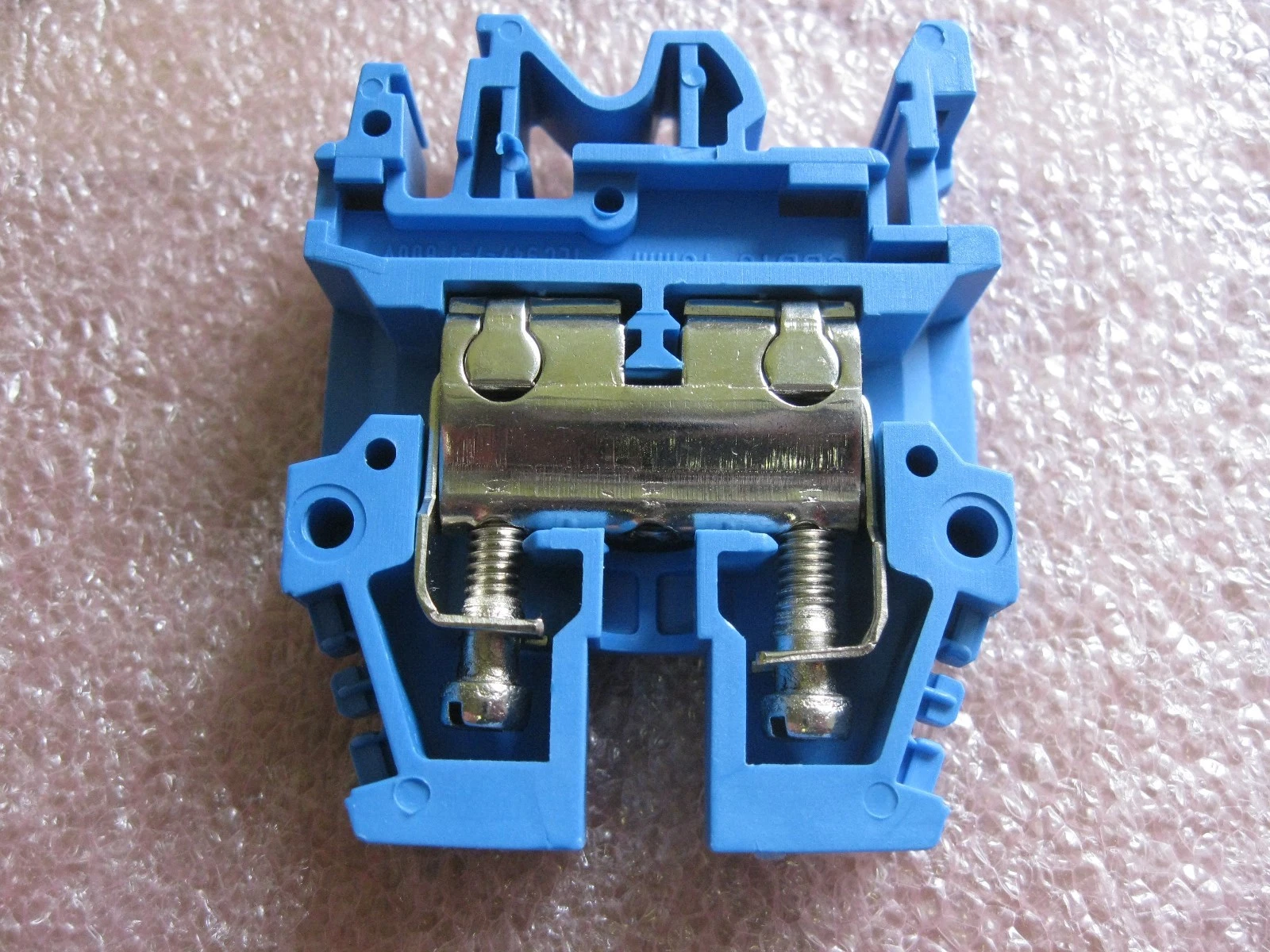

Cabur CBD.10 (Ex)i 10 mm Blue DIN Rail Termna
Cabur · Cabur
10MM BLUE DIN RAIL TERMNA
- KEW code
- CBD10/B
- Brand
- Cabur
- Manufacturer
- Cabur
- MPN
- CBD.10 (Ex)i
- Category
- Wiring Accessories
- Specification
- Product type: single-level feed-through screw terminal block. Series: Cabur CBD. Rated cross-section: 10 mm². Conductor capacity: flexible and rigid 0.5–16 mm²; ferrule 10 mm² – WP100/21. Maximum voltage: 1000 V AC/DC. Maximum current: 57 A at rated cross-section. Insulation stripping length: 14 mm. Tightening torque: 1.2 / 1.9 Nm. Width: 10 mm; length: 44 mm. Height on TH35-7.5 / TH35-15 / G32: 55 / 63 / 59 mm. Insulation material: polyamide UL94V-0. Colour: blue.
- Feature
- 10 mm² feed-through terminal block.
- Feature
- Blue Cabur CBD family variant.
- Feature
- 0.5–16 mm² flexible and rigid conductor capacity.
- Feature
- 1000 V AC/DC maximum voltage and 57 A rated current.
- Feature
- Screw-clamp connection on standard DIN rail.
