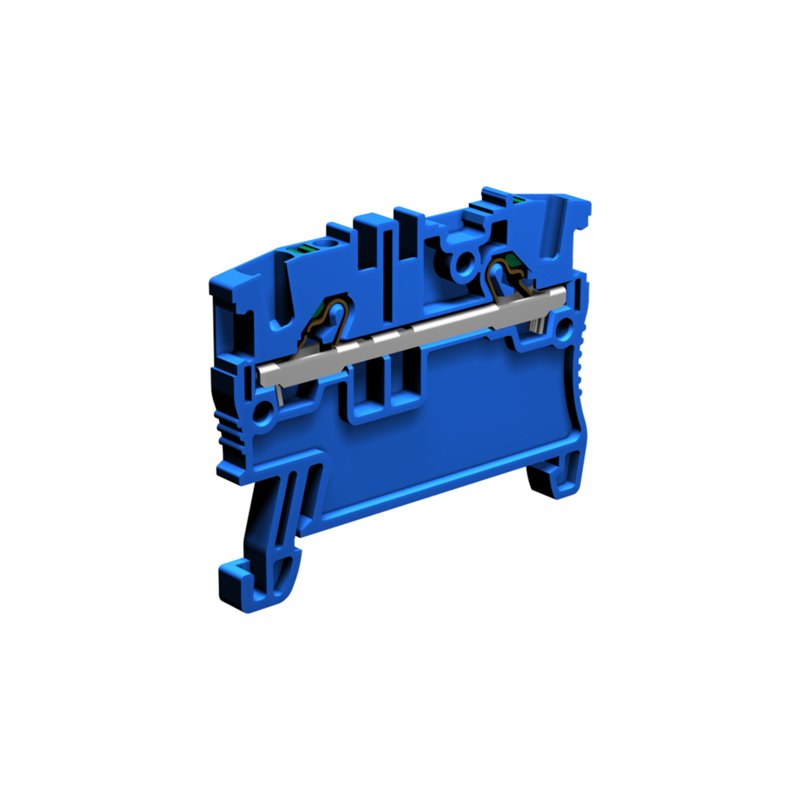

Cabur EFC100BL 1.5 mm DIN Rail Contacts
Cabur · Cabur
Cabur EFC100BL blue push-in DIN-rail terminal block for 1.5 mm² conductors, rated 630 V AC/DC and 17.5 A.
- KEW code
- CBD1.5
- Brand
- Cabur
- Manufacturer
- Cabur
- MPN
- EFC100BL
- Category
- Wiring Accessories
- Specification
- Product type: single-level feed-through push-in terminal block. Brand and manufacturer: Cabur. Manufacturer part number: EFC100BL. Colour: Blue. Rated cross-section: 1.5 mm². Rated voltage: 630 V AC/DC. Rated current: 17.5 A at the rated cross-section. Connection capacity: 0.2–1.5 mm² conductors; 1.5 mm² with ferrule. Mounting: TH35 DIN rail. Width/pitch: 3.5 mm.
- Feature
- 1.5 mm² rated cross-section
- Feature
- 17.5 A rated current
- Feature
- 630 V AC/DC rating
- Feature
- Blue single-level feed-through block
- Feature
- Push-in connection on TH35 DIN rail
