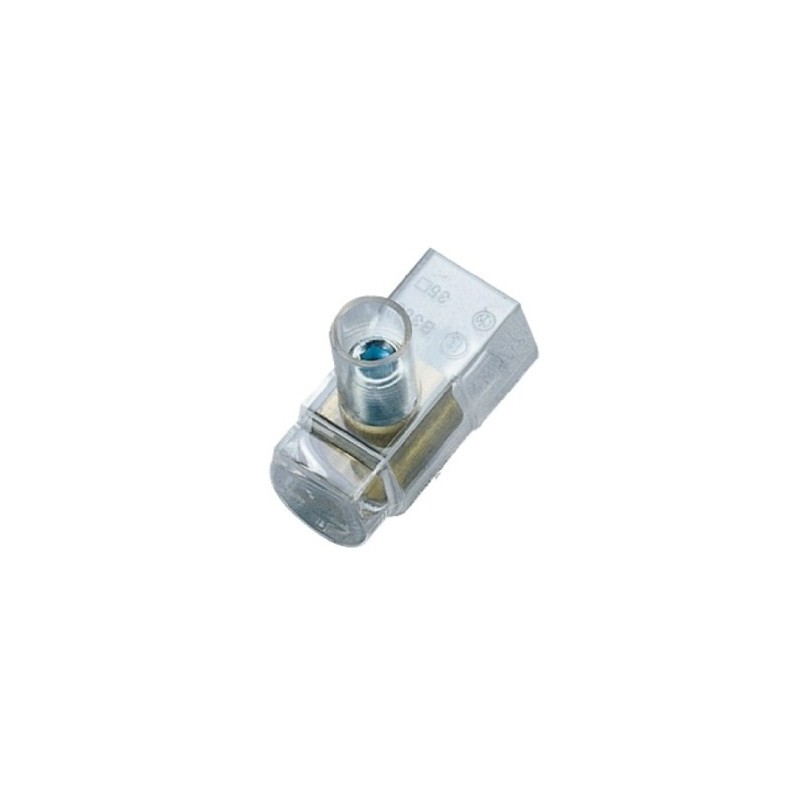

Arnocanali B350 35 mm² single-pole BOXLINE connector
Arnocanali
In stock
Arnocanali B350 single-pole connector for 35 mm² cable joints, rated 125 A at 500 V.
Arnocanali B350 is a single-pole BOXLINE connector for 35 mm² cable joints. It is rated 125 A at 500 V with IP00 protection; check the permitted conductor combinations and enclosure before installation.
- KEW code
- B350
- Brand
- Arnocanali
- Manufacturer
- Arnocanali
- MPN
- B350
- Category
- Wiring Accessories
- Specification
- Product type: Single-pole BOXLINE hood connector. Brand and model: Arnocanali B350. Nominal conductor section: 35 mm². Rated current: 125 A. Rated voltage: 500 V. Protection rating: IP00. Conductor combinations: 2 × 35 mm², 3 × 25 mm² or 4 × 16 mm². Housing material: Polycarbonate. Insert material: Brass.
- Feature
- 35 mm² nominal conductor section
- Feature
- 125 A rated current
- Feature
- 500 V rated voltage
- Feature
- IP00 protection rating
- Feature
- Single-pole Arnocanali BOXLINE B350
