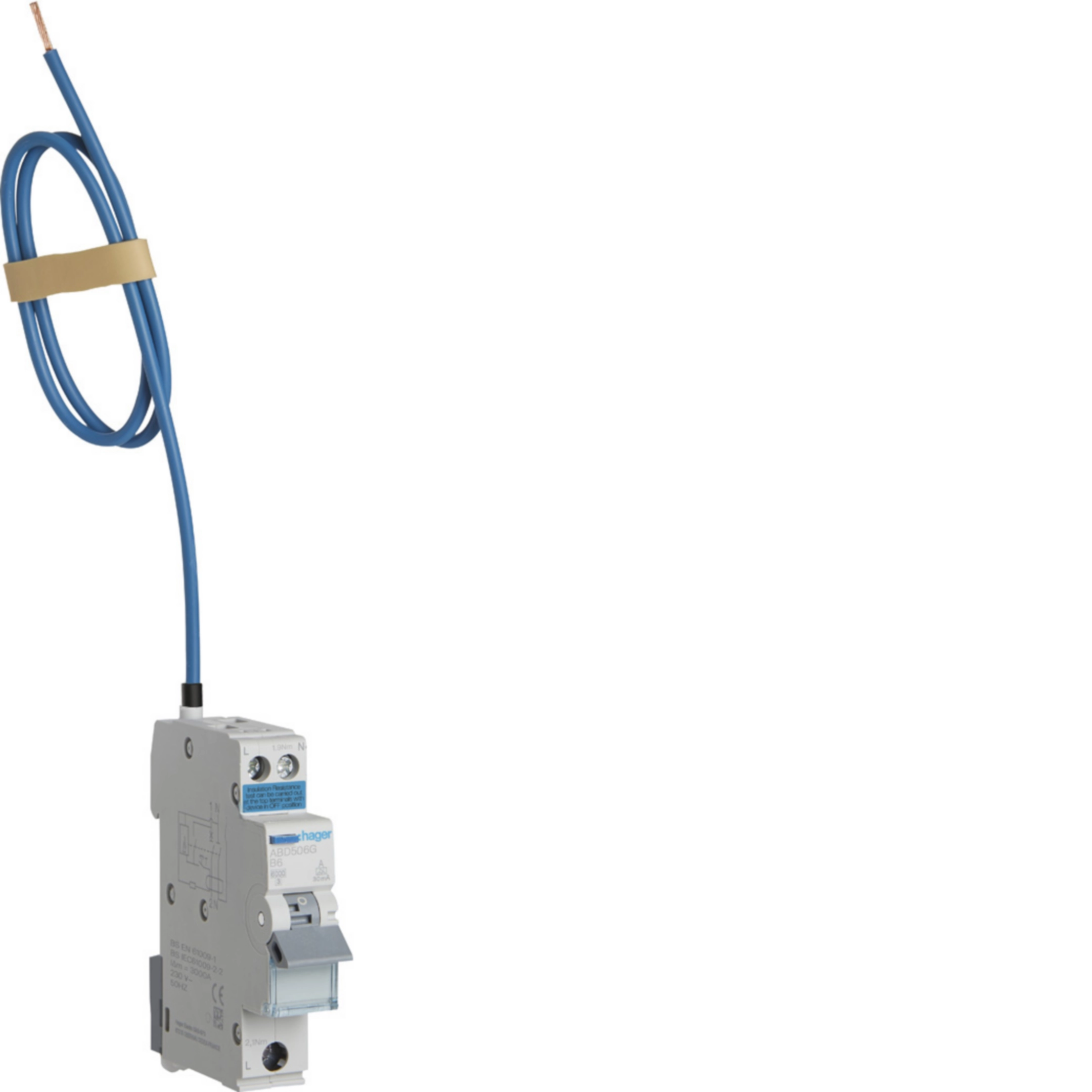

Hager 6 A 1P+N bidirectional RCBO, B curve, 30 mA, 6 kA, 1-module
Hager · Hager
The Hager ADB506G is a one-module bidirectional RCBO combining overload, short-circuit and Type A residual-current protection for a 6 A final circuit. It is a 1P+N, B-curve device rated at 230 V with 30 mA earth-leakage sensitivity and 6 kA breaking capacity.
- KEW code
- ADB506G
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- ADB506G
- Category
- Distribution
- Specification
- One-module bidirectional RCBO with 1P+N configuration. 6 A rated current with B tripping curve. 30 mA Type A residual-current protection. 6 kA short-circuit breaking capacity. Rated at 230 V and 50 Hz. IP20 DIN-rail device measuring 85 x 17.7 x 70 mm. Accepts 1 to 10 mm² flexible or 1 to 16 mm² solid conductors.
- Feature
- Combined MCB and RCD protection.
- Feature
- Space-saving one-module format.
- Feature
- Type A protection for modern electrical loads.
- Feature
- Bidirectional design for suitable supply arrangements.
