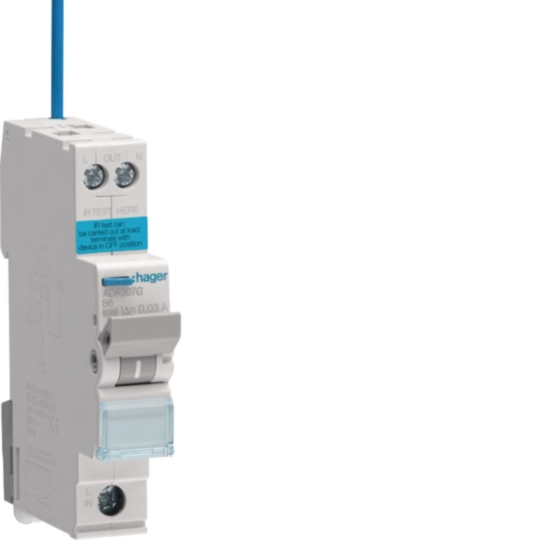

Hager ADA307G 6 A single-pole RCBO, B curve, 30 mA, 6 kA, 1-module
Hager · Hager
HAGER 6A 1M RCBO 30MA A
- KEW code
- ADA307G
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- ADA307G
- Category
- Distribution
- Specification
- - Pole configuration: 1P. - Curve: B. - Rated current: 6 A. - Rated residual operating current: 30 mA. - Residual current type: A. - Breaking capacity: 6 kA. - Number of modules: 1. - Rated operational voltage ue: 230 / 240 V. - Height: 92 mm. - Width: 17.7 mm. - Depth: 70 mm.
- Feature
- Single-pole, one-module RCBO.
- Feature
- B-curve protection with 6 A rating and 30 mA Type A sensing.
- Feature
- Compact DIN-rail body for space-sensitive boards.
