KEW catalogue
1.5 mm² 3-Core Arctic-Grade Flexible PVC Cable — Yellow
3-core 1.5 mm² Arctic-grade flexible cable with plain annealed stranded copper conductors and low-temperature PVC insulation and sheath. The yellow outer sheath identifies this colour variant. Supply length: Tell us the length required when requesting a quote. The family voltage rating is 300/500 V.
- KEW code
- AC315Y
- Category
- Cable & Wire
- Specification

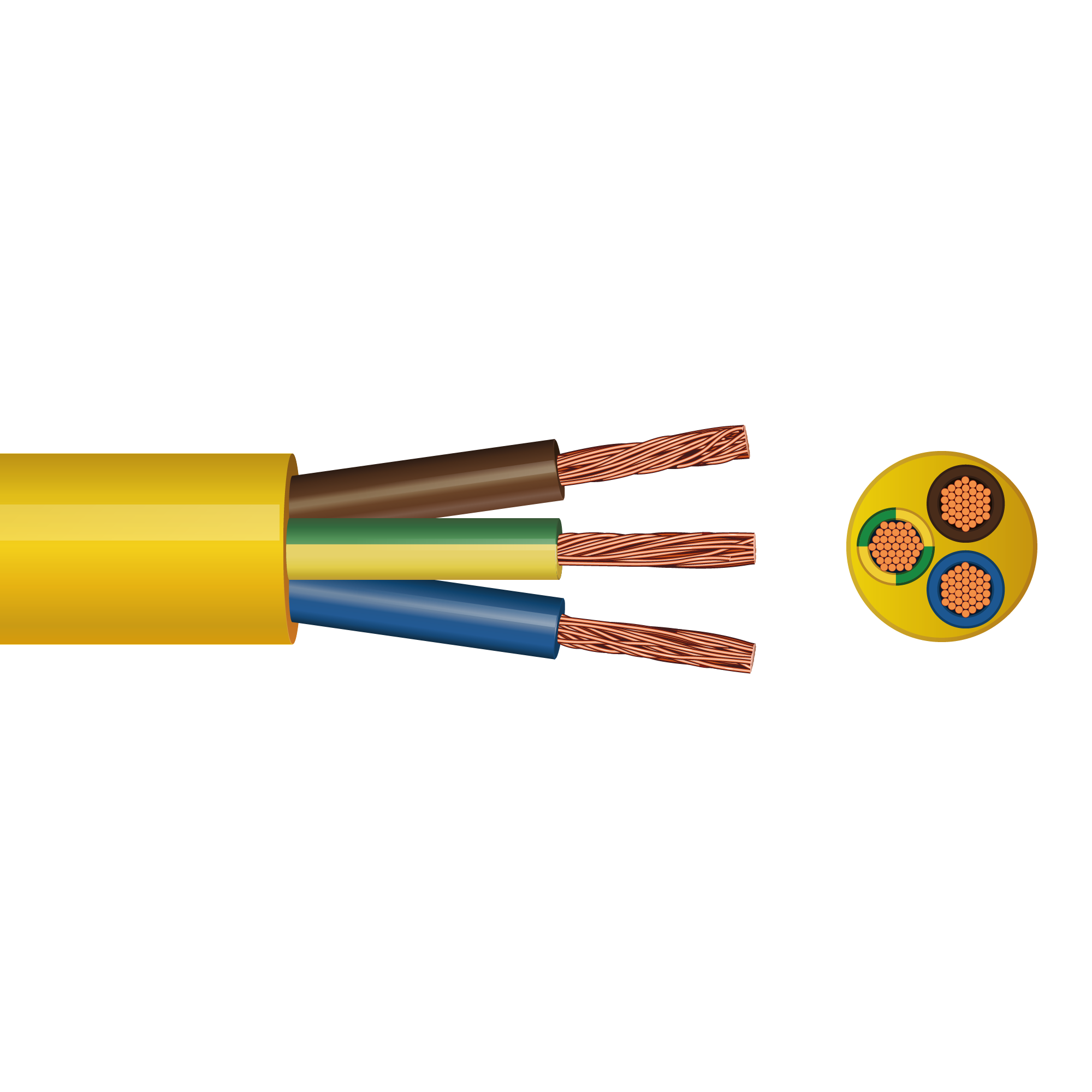

- Cable type: Arctic-grade flexible PVC cable. Core count: 3. Nominal conductor area: 1.5 mm² per core. Conductor: Plain annealed flexible stranded copper. Insulation and sheath: PVC and low-temperature PVC. Sheath colour: Yellow. Family voltage rating: 300/500 V. Supply length: Tell us the length required when requesting a quote. Image: Side cutaway and end-on cross-section; diagram is not to scale.
- Feature
- 3-core construction.
- Feature
- 1.5 mm² per core.
- Feature
- Plain annealed flexible stranded copper conductors.
- Feature
- Low-temperature PVC insulation and sheath.
- Feature
- Yellow outer sheath.
- Feature
- Supply length: Tell us the length required when requesting a quote.
- Data sheet
- Open technical sheet
