Hensel KM 9065 5-pole junction box, 2.5–6 mm², IP65
Hensel
Low stock

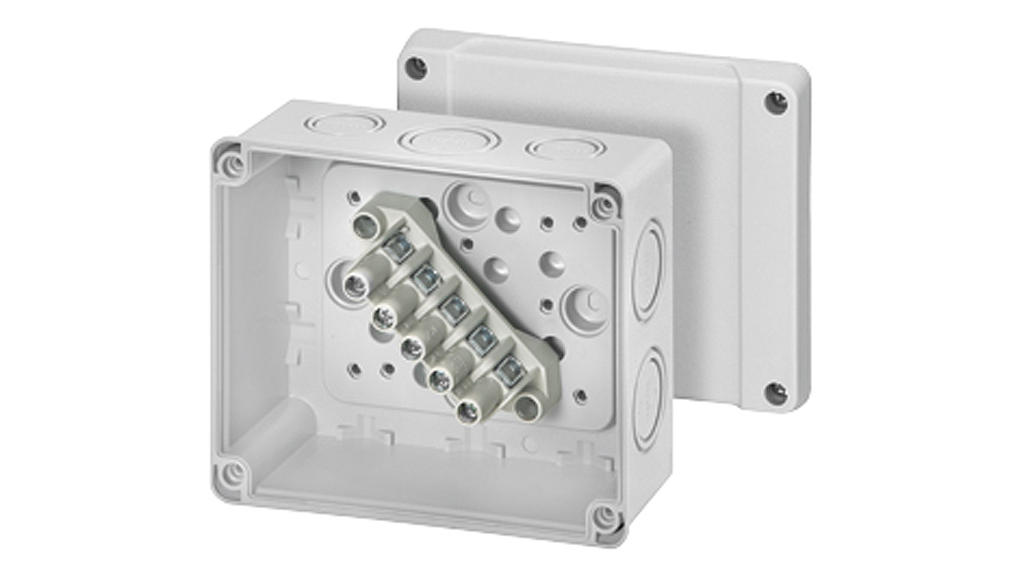

Five-pole Hensel cable junction box for 2.5–6 mm² copper conductors, in a 139 × 119 × 70 mm IP65 thermoplastic enclosure.
The Hensel KM 9065 is a 5-pole cable junction box for 2.5–6 mm² copper conductors. Its IP65 thermoplastic enclosure measures 139 × 119 × 70 mm; metric cable-entry knockouts are provided, with cable-entry fittings ordered separately.
- KEW code
- 9065
- Brand
- Hensel
- Manufacturer
- Hensel
- MPN
- KM 9065
- Category
- Enclosures & Boxes
- Specification
- Product type: Cable junction box. Manufacturer model: KM 9065. Terminal block: 5-pole, included. Conductor size: 2.5–6 mm² copper. Per-pole conductor capacity: 4 × 2.5 mm² solid, 4 × 4 mm² solid, 3 × 6 mm² solid, or 2 × 10 mm² solid. Rated insulation voltage: 690 V AC/DC. Terminal tightening torque: 1.5 Nm. Protection rating: IP65. Material: Thermoplastic. Colour: Grey, RAL 7035. Dimensions (W × H × D): 139 × 119 × 70 mm. Cable entry: Metric knockouts; cable-entry fittings ordered separately.
- Feature
- Hensel KM 9065 cable junction box.
- Feature
- Included 5-pole terminal block for 2.5–6 mm² copper conductors.
- Feature
- IP65 thermoplastic enclosure, 139 × 119 × 70 mm.
- Feature
- Metric cable-entry knockouts; entry fittings ordered separately.
