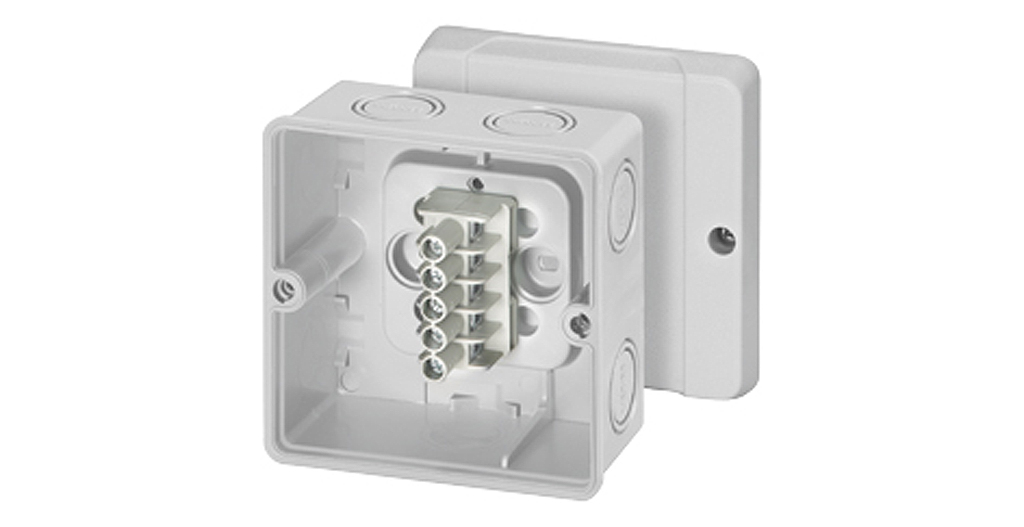

Hensel D9045 Compact junction box
Hensel
In stock
Hensel D9045 five-pole cable junction box for 1.5–4 mm² three-phase or up to 6 mm² single-phase copper connections.
Hensel DM 9045 (KEW MPN D9045) is a compact grey thermoplastic cable junction box with an integral five-pole terminal block for low-voltage connections. It accepts 1.5–4 mm² solid copper conductors for three-phase connections and up to 6 mm² solid copper conductors for single-phase connections, with a rated insulation voltage of 690 V a.c./d.c. The box measures 98 × 98 × 61 mm and is intended for normal environments and protected outdoor use.
- KEW code
- 9045
- Brand
- Hensel
- Manufacturer
- Hensel
- MPN
- D9045
- Category
- Enclosures & Boxes
- Specification
- Product type: Cable junction box. Conductor capacity: 1.5–4 mm² solid copper for three-phase connections and up to 6 mm² solid copper for single-phase connections. Pole count: 5-pole. Terminals: Included. Rated insulation voltage: 690 V a.c./d.c. Terminal tightening torque: 1.2 Nm. Housing: Grey thermoplastic, RAL 7035. Dimensions: 98 × 98 × 61 mm. Application: Normal environments and protected outdoor use. Standard: IEC 60670-22.
- Feature
- Five-pole terminal layout.
- Feature
- 1.5–4 mm² solid copper capacity for three-phase connections.
- Feature
- Up to 6 mm² solid copper capacity for single-phase connections.
- Feature
- 690 V a.c./d.c. rated insulation voltage.
- Feature
- 98 × 98 × 61 mm thermoplastic box.
- Feature
- Grey RAL 7035 finish.
- Feature
- Intended for normal environments and protected outdoor use.
