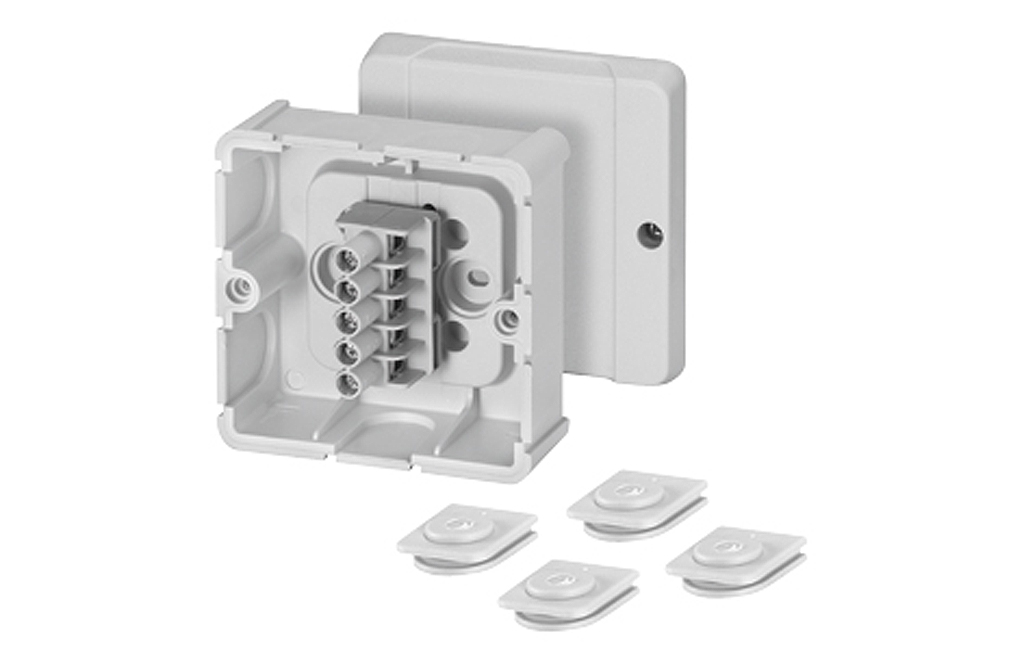

Hensel D9025 grey PVC cable junction box, IP54, 88 × 88 × 49 mm

Hensel · Gustav Hensel GmbH

HENSEL 1.5-2.5SQ J BOX 5P

KEW code

9025

Brand

Hensel

Manufacturer

Gustav Hensel GmbH

MPN

D9025

Category

Enclosures & Boxes

Specification

- Conductor range: 1.5-2.5 mm2 Cu three-phase. - Dimensions: 88 x 88 x 49 mm. - Material: PS polystyrene. - Colour: Grey RAL 7035. - Ip rating: IP54. - Standard: IEC 60670-22. - Terminals: 5-pole; per pole 6 x 1.5 mm2 solid, 4 x 2.5 mm2 solid, 3 x 4 mm2 solid. - Terminal torque: 1.2 Nm. - Ambient temperature: -25 C to +40 C. - Rated insulation voltage: 690 V AC/DC.

Feature

Five-pole terminal junction box for 1.5-2.5 mm2 copper circuits

Feature

Supplied with four DPS 02 cable entries for 10-13.5 mm sealing range

Feature

Grey thermoplastic enclosure rated IP54 for protected indoor or outdoor installation

Feature

690 V insulation rating with 1.2 Nm terminal tightening torque
