Wiska COMBI 407 BK junction box with M25 knockout, 95 × 95 × 60 mm
Wiska
No stock / backorder

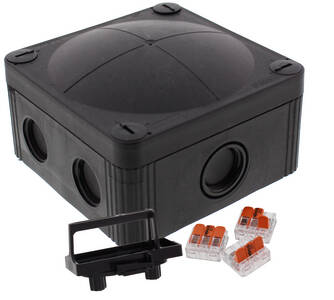

Black 95 × 95 × 60 mm junction box with a central M25 knockout and three WAGO 221-413 terminal connectors.
The WISKA COMBI 407 BK is a black polypropylene junction box measuring 95 × 95 × 60 mm. It has six M20 threaded membrane entries, a central M20 membrane entry with a knockout to M25, two rear membrane entries and a terminal carrier fitted with three WAGO 221-413 connectors. The enclosure provides IP66 protection with membrane entries; IP67 requires a threaded entry fitted with an ESKV cable gland.
- KEW code
- 60407
- Brand
- Wiska
- Manufacturer
- Wiska
- MPN
- COMBI 407 BK / 3-221-413
- Category
- Enclosures & Boxes
- Specification
- Product type: Junction box with terminal carrier. Manufacturer model: COMBI 407 BK / 3-221-413. Dimensions (L × W × H): 95 × 95 × 60 mm. Housing material: Polypropylene (PP). Seal material: Thermoplastic elastomer (TPE). Colour: Black, RAL 9005. Cable entries: 6 × M20 threaded membrane entries; 1 central M20 threaded membrane entry with knockout to M25; 2 rear membrane entries. Included terminals: 3 × WAGO 221-413. Terminal rating: 32 A, 450 V, 4 mm². Protection: IP66 with membrane entries; IP67 with an ESKV cable gland at a threaded entry. Fixing: Mounting clip or 4 internal openings outside the sealing area.
- Feature
- 95 × 95 × 60 mm black polypropylene enclosure.
- Feature
- Six M20 entries, central M25 knockout and two rear membrane entries.
- Feature
- Includes terminal carrier with three WAGO 221-413 connectors.
- Feature
- IP66 with membrane entries; IP67 with ESKV cable gland at threaded entries.
