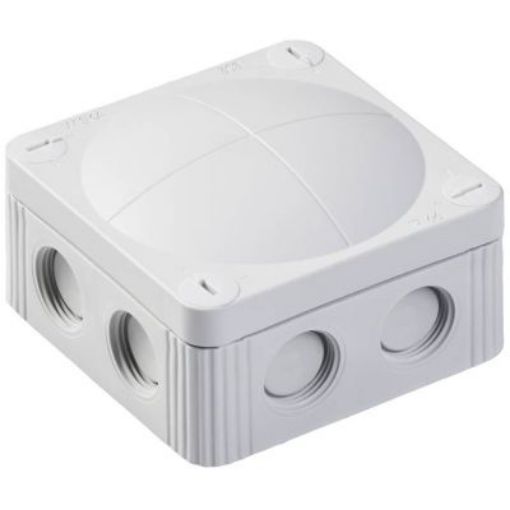

Wiska COMBI 308/5 LG 85 × 85 × 51 mm junction box

Wiska

In stock

Light grey Wiska COMBI 308/5 LG junction box with an included 5-pole terminal block.

The Wiska COMBI 308/5 LG is an 85 × 85 × 51 mm polypropylene junction box with a TPE seal. It has eight M20 membrane entries and includes a 5-pole, 4 mm² terminal block. The enclosure provides IP66 protection with membrane entries; use suitable cable glands for IP67 protection.

KEW code

60401

Brand

Wiska

Manufacturer

Wiska

MPN

COMBI 308/5 LG

Category

Enclosures & Boxes

Specification

Product type: Junction box with terminal block. Manufacturer model: COMBI 308/5 LG. External dimensions: 85 × 85 × 51 mm. Housing material: Polypropylene (PP). Seal material: Thermoplastic elastomer (TPE). Colour: Light grey, RAL 7035. Cable entries: 8 × M20 × 1.5 membrane entries. Protection: IP66 with membrane entries; IP67 when fitted with suitable cable glands. Included terminal block: 5-pole, 4 mm²; rated 32 A, 400 V.

Feature

85 × 85 × 51 mm light grey polypropylene enclosure.

Feature

Eight M20 × 1.5 membrane cable entries.

Feature

Includes a 5-pole, 4 mm² terminal block.

Feature

IP66 with membrane entries; IP67 with suitable cable glands.
