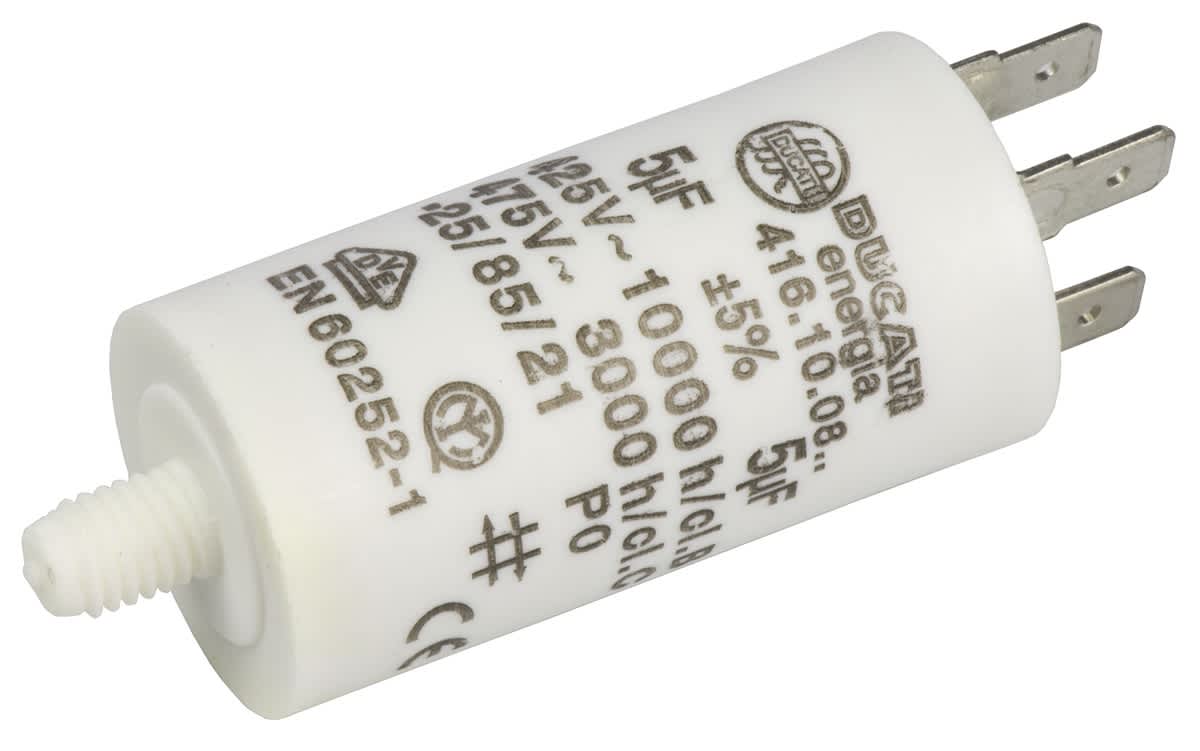

Ducati Energia 4.16.10.08.64 5 µF Motor-Run Capacitor, 450 V AC
Ducati Energia · Ducati Energia
Ducati Energia 4.16.10.08.64 motor-run capacitor with 5 µF (5 uF) capacitance and a 450 V AC rating for compatible single-phase motors.
- KEW code
- 5MF
- Brand
- Ducati Energia
- Manufacturer
- Ducati Energia
- MPN
- 4.16.10.08.64
- Category
- Capacitors
- Specification
- Product type: Metallised polypropylene motor-run capacitor. Capacitance: 5 µF (5 uF). Rated voltage: 450 V AC. Tolerance: ±5%. Dimensions: 28 mm diameter × 55 mm height. Mounting: M8 stud mount. Connection: Quick-connect 6.3 mm terminals. Operating temperature: −25 °C to +85 °C. Series: Ducati Energia 4.16.10. Manufacturer part number: 4.16.10.08.64.
- Feature
- 5 µF (5 uF) capacitance.
- Feature
- 450 V AC rating with ±5% tolerance.
- Feature
- 28 mm diameter × 55 mm height.
- Feature
- M8 stud mount with quick-connect 6.3 mm terminals.
- Feature
- Metallised polypropylene Ducati Energia 4.16.10.08.64 capacitor.
- Data sheet
- Open technical sheet
