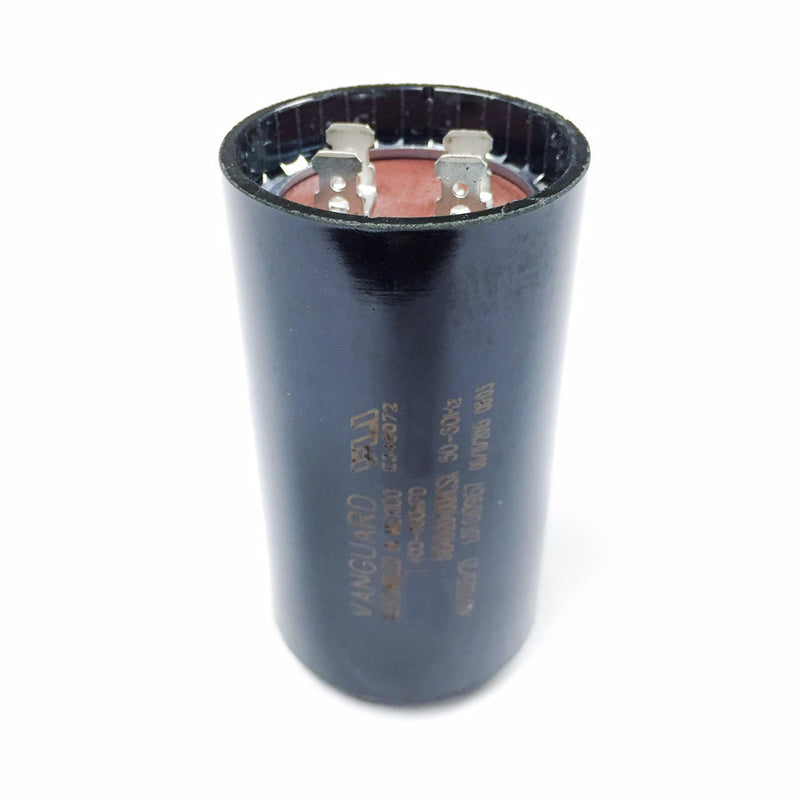

Vanguard BC-54M-330 53–64 µF Motor-Start Capacitor, 330 V AC
Vanguard · Vanguard
Vanguard BC-54M-330 motor-start capacitor with a 53–64 µF (53-64 uF) capacitance range, 330 V AC rating and four 1/4-inch spade terminals.
- KEW code
- 53MF
- Brand
- Vanguard
- Manufacturer
- Vanguard
- MPN
- BC-54M-330
- Category
- Capacitors
- Specification
- Product type: Motor-start capacitor. Capacitance range: 53–64 µF (53-64 uF). Rated voltage: 330 V AC. Frequency: 50/60 Hz. Temperature range: −40 °C to +65 °C. Case: Round phenolic. Dimensions: 1-13/16 in diameter × 3-3/8 in length (approximately 46 × 86 mm). Terminals: Four 1/4 in spade terminals. Certification: UL Recognized. Brand: Vanguard. Manufacturer part number: BC-54M-330.
- Feature
- 53–64 µF (53-64 uF) capacitance range.
- Feature
- 330 V AC rating at 50/60 Hz.
- Feature
- −40 °C to +65 °C operating temperature range.
- Feature
- Round phenolic case, approximately 46 × 86 mm.
- Feature
- Four 1/4 in spade terminals and UL Recognized certification.
