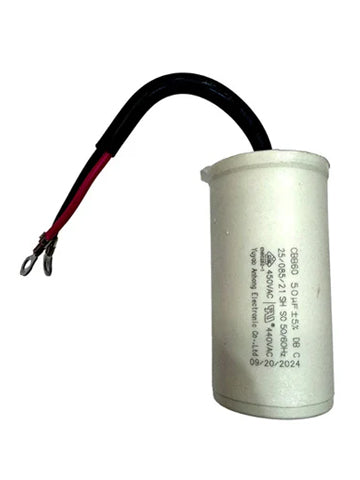

CBB60 50 µF Motor-Run Capacitor, 450 V AC
CBB60 50 µF (50 uF) 450 V AC motor-run capacitor with pre-fitted leads for compatible single-phase motors, fans, pumps and compressors.
- KEW code
- 50MF
- MPN
- CBB60 50µF 450VAC
- Category
- Capacitors
- Specification
- Product type: CBB60 motor-run capacitor. Capacitance: 50 µF (50 uF). Rated voltage: 450 V AC, 50/60 Hz. Construction: Polypropylene film dielectric in a cylindrical case. Dimensions: 49 mm diameter × 97 mm height. Lead length: 130 mm. Stud size: 4 mm. Connection: Pre-fitted leads. Application: Compatible single-phase motors, HVAC, pumps, compressors and fans.
- Feature
- 50 µF (50 uF) capacitance.
- Feature
- 450 V AC rating at 50/60 Hz.
- Feature
- CBB60 polypropylene film motor-run construction.
- Feature
- 49 mm diameter × 97 mm height.
- Feature
- 130 mm pre-fitted leads with 4 mm stud size.
