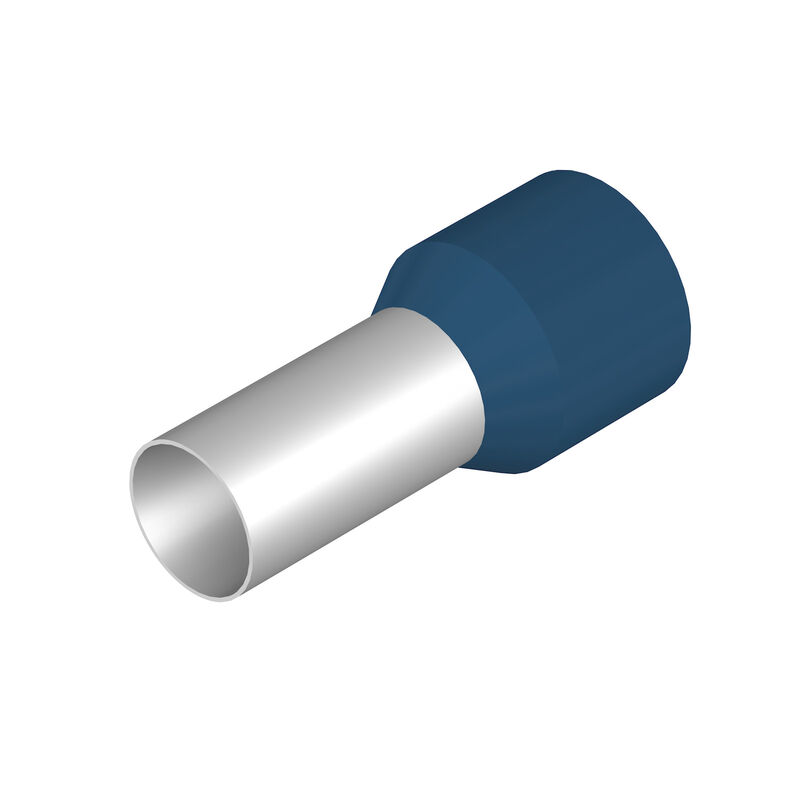

Weidmüller H50,0/36D BL 50 mm² blue insulated cable ferrule
Weidmüller
No stock / backorder
Weidmüller blue insulated wire-end ferrule for terminating a 50 mm² conductor.
Weidmüller H50,0/36D BL is an insulated blue wire-end ferrule for a 50 mm² conductor. It has a 36 mm overall length, 26 mm stripping length and 20 mm contact surface. Confirm the conductor, crimping tool and terminal requirements before ordering.
- KEW code
- 50F
- Brand
- Weidmüller
- Manufacturer
- Weidmüller
- MPN
- 9019340000
- Category
- Cable & Wire
- Specification
- Product type: Insulated wire-end ferrule. Manufacturer type: Weidmüller H50,0/36D BL. Nominal conductor cross-section: 50 mm². Overall length: 36 mm. Stripping length: 26 mm. Contact surface length: 20 mm. Colour: Blue (DIN colour code). Metal sleeve thickness: 0.3 mm. Plastic collar thickness: 0.5 mm. Sales unit: Each.
- Feature
- 50 mm² nominal conductor cross-section.
- Feature
- Blue plastic insulating collar with DIN colour coding.
- Feature
- 36 mm overall length with a 26 mm stripping length.
- Feature
- 20 mm contact surface length.
- Feature
- Confirm the conductor, crimping tool and terminal requirements before ordering.
