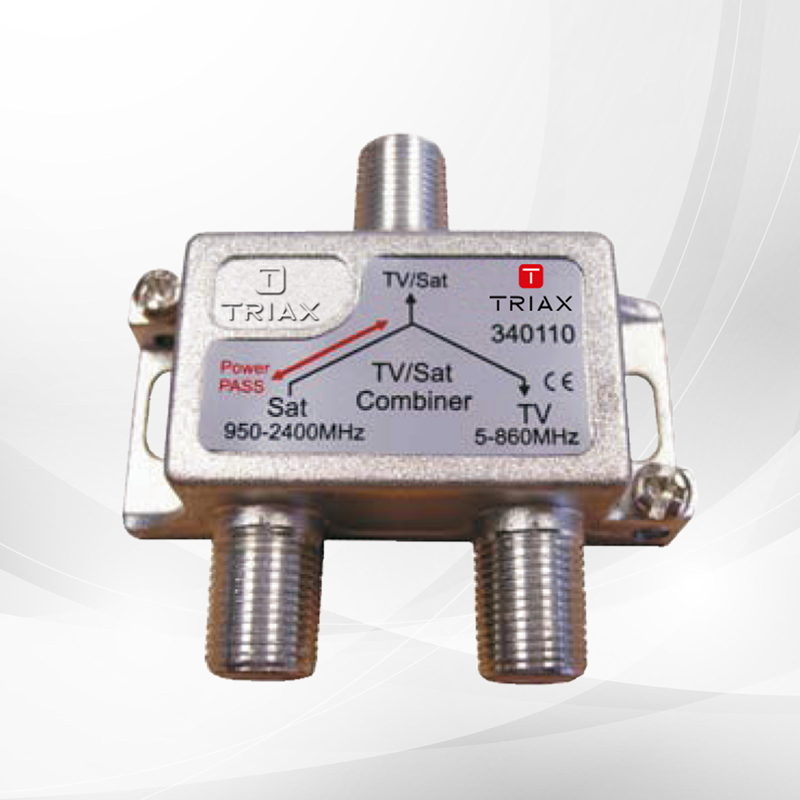

Triax 110 TV/satellite combiner
Triax
In stock
Triax combiner for combining terrestrial TV and satellite signals onto one coaxial feed.
Use the separate TV and satellite inputs to feed one coaxial cable. Match each input to the signal frequency range and check that the satellite path provides the power-pass connection required by the installation.
- KEW code
- 340110
- Brand
- Triax
- Manufacturer
- Triax
- MPN
- 340110
- Category
- Data & Comms
- Specification
- Product type: TV/satellite signal combiner. Brand: Triax. Model: 110. Article number: 340110. Inputs: 2. Outputs: 1. Satellite frequency range: 950–2400 MHz. Terrestrial TV frequency range: 5–860 MHz. DC pass: satellite input. Connectors: F-female. Housing: die-cast. Dimensions: 75 × 38 × 16 mm (width × height × depth).
- Feature
- Triax combiner for combining terrestrial TV and satellite signals onto one coaxial feed.
