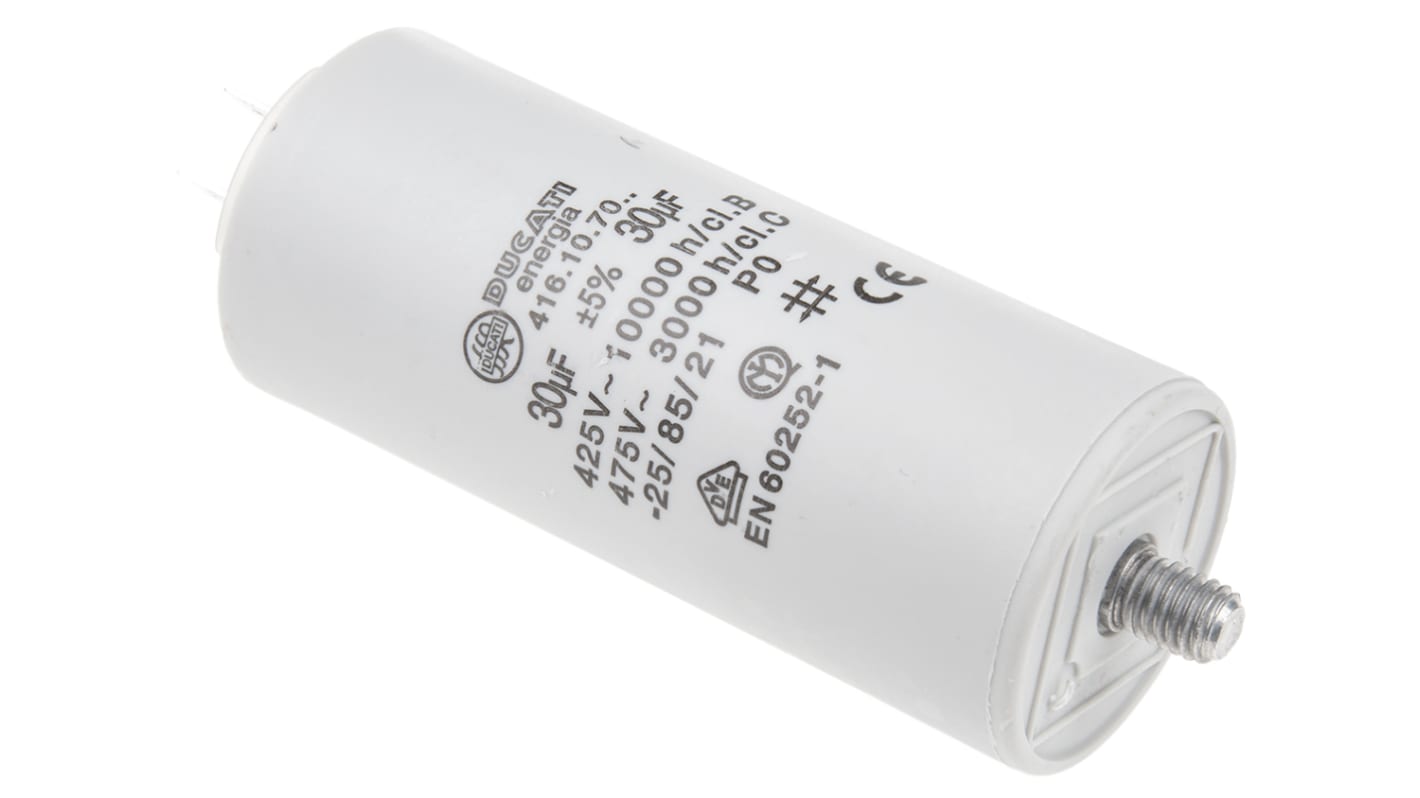

Ducati Energia 4.16.10.70.64 30 µF Motor-Run Capacitor, 450 V AC
Ducati Energia · Ducati Energia
Ducati Energia 4.16.10 motor-run film capacitor with 30 µF (30 uF) capacitance and a 450 V AC rating. The stud-mounted polypropylene capacitor is intended for compatible electric motor circuits and measures approximately 40 mm wide × 92 mm high.
- KEW code
- 30MF
- Brand
- Ducati Energia
- Manufacturer
- Ducati Energia
- MPN
- 4.16.10.70.64
- Category
- Capacitors
- Specification
- Product type: polypropylene film motor-run capacitor. Capacitance: 30 µF (30 uF). Rated voltage: 450 V AC. Tolerance: ±5%. Mounting: stud mount. Approximate dimensions: 40 mm wide × 92 mm high. Operating temperature: -25 °C to +85 °C. Terminals: 2-pin stud-mounted format. Brand: Ducati Energia. Manufacturer part number: 4.16.10.70.64.
- Feature
- 30 µF (30 uF) capacitance.
- Feature
- 450 V AC rating.
- Feature
- ±5% tolerance.
- Feature
- 40 mm wide × 92 mm high approximate case size.
- Feature
- Stud-mounted polypropylene film construction.
- Data sheet
- Open technical sheet
