KEW catalogue

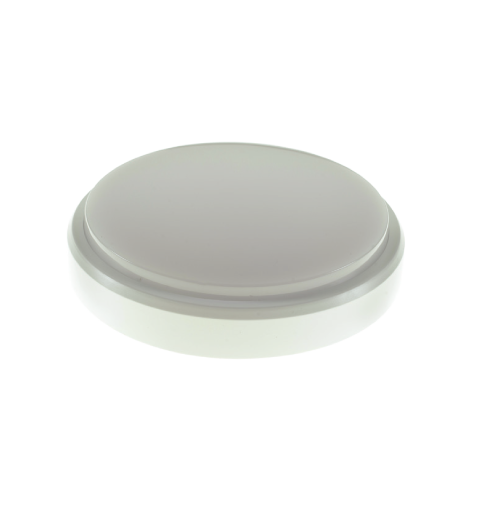

Source SCIR sensor BL/WH CCT 18 W LED bulkhead with sensor, IP65

Source · SGD Lighting

2D 18W LED C/W SENSOR

KEW code

2D18LED/S

Brand

Source

Manufacturer

SGD Lighting

MPN

SCIR SEN BL/WH CCT

Category

Lighting

Specification

Product type: Complete circular sensor LED bulkhead fitting. Manufacturer: SGD Lighting / Source. Product family: SCIR SEN BL/WH CCT. Light source: Integral LED light source and control gear included. Sensor: Integral motion sensor. Selectable power: 9 W, 12 W or 18 W. Luminous flux: 1,100 lm at 9 W, 1,500 lm at 12 W and 2,000 lm at 18 W. Colour temperature: Selectable 3000 K, 4000 K or 6500 K. Detection range: Up to 4 m. Detection angle: 120 degrees. Input voltage: 220-240 V AC. Ingress protection: IP65. Dimensions: 211 mm diameter x 55 mm depth. Trim colours: White and black trims supplied.

Feature

Complete circular sensor bulkhead with integral LED equipment.

Feature

Integral motion sensor.

Feature

Selectable 9 W, 12 W or 18 W output.

Feature

Selectable 3000 K, 4000 K or 6500 K colour temperature.

Feature

IP65-rated complete fitting.

Feature

White and black trims supplied.
