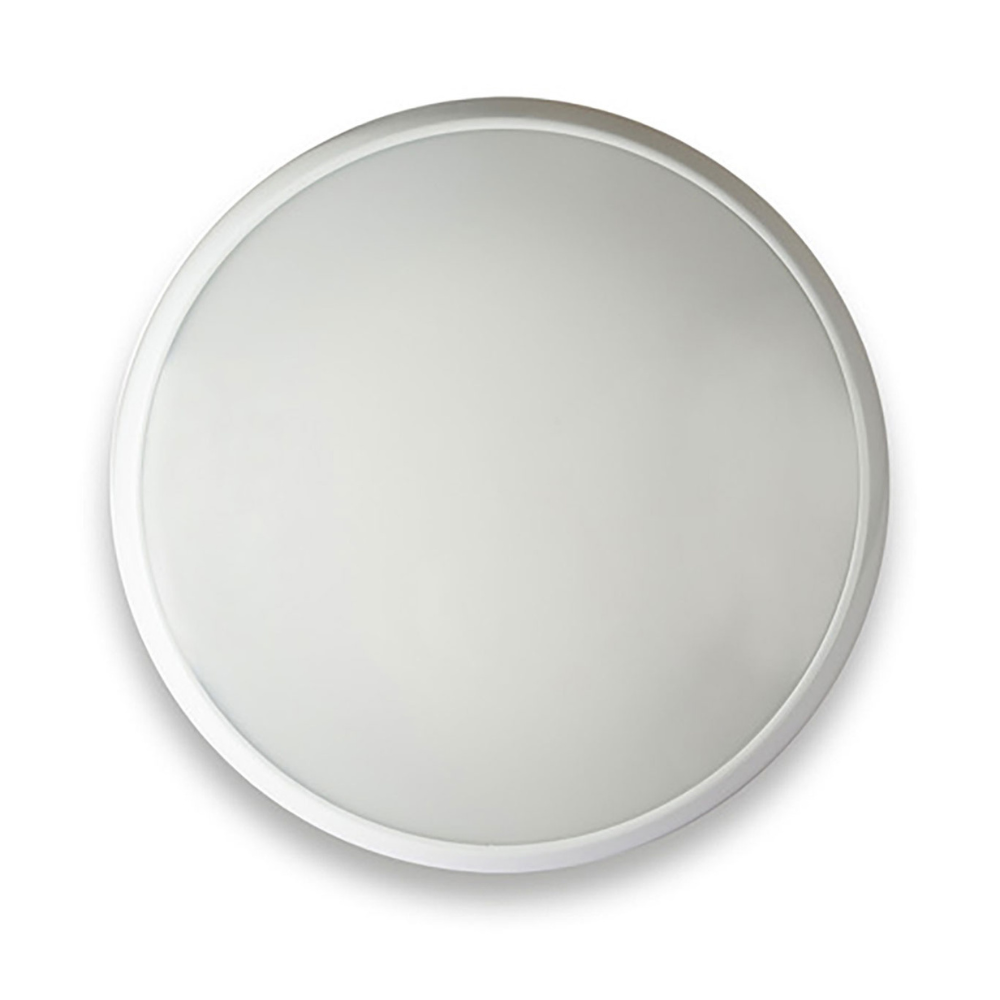

Source S2DMW-SENS 18 W LED bulkhead with sensor, IP65
Source · SGD Lighting
18W LED BH C/W MICRO/SENS
- KEW code
- 2D18LED/MW
- Brand
- Source
- Manufacturer
- SGD Lighting
- MPN
- S2DMW-SENS
- Category
- Lighting
- Specification
- Product type: Complete circular sensor LED ceiling bulkhead. Manufacturer: SGD Lighting / Source. Model: S2DMW-SENS. Light source: Integral LED light source and control gear included. Sensor: Integral microwave motion sensor with corridor function. Selectable power: 9 W, 14 W or 18 W. Luminous flux: 1,080 lm at 9 W, 1,680 lm at 14 W and 2,160 lm at 18 W. Colour temperature: Selectable 3000 K, 4000 K or 6500 K. Input voltage: 240 V AC, 50 Hz. Ingress protection: IP65. Impact protection: IK08. Dimensions: 318 mm diameter x 82 mm depth. Beam angle: 120 degrees. Dimming: Non-dimmable.
- Feature
- Complete sensor ceiling bulkhead with integral LED equipment.
- Feature
- Integral microwave motion sensor and corridor function.
- Feature
- Selectable 9 W, 14 W or 18 W output.
- Feature
- Selectable 3000 K, 4000 K or 6500 K colour temperature.
- Feature
- IP65 and IK08 rated complete fitting.
- Feature
- Designed for automatic lighting in circulation and shared spaces.
