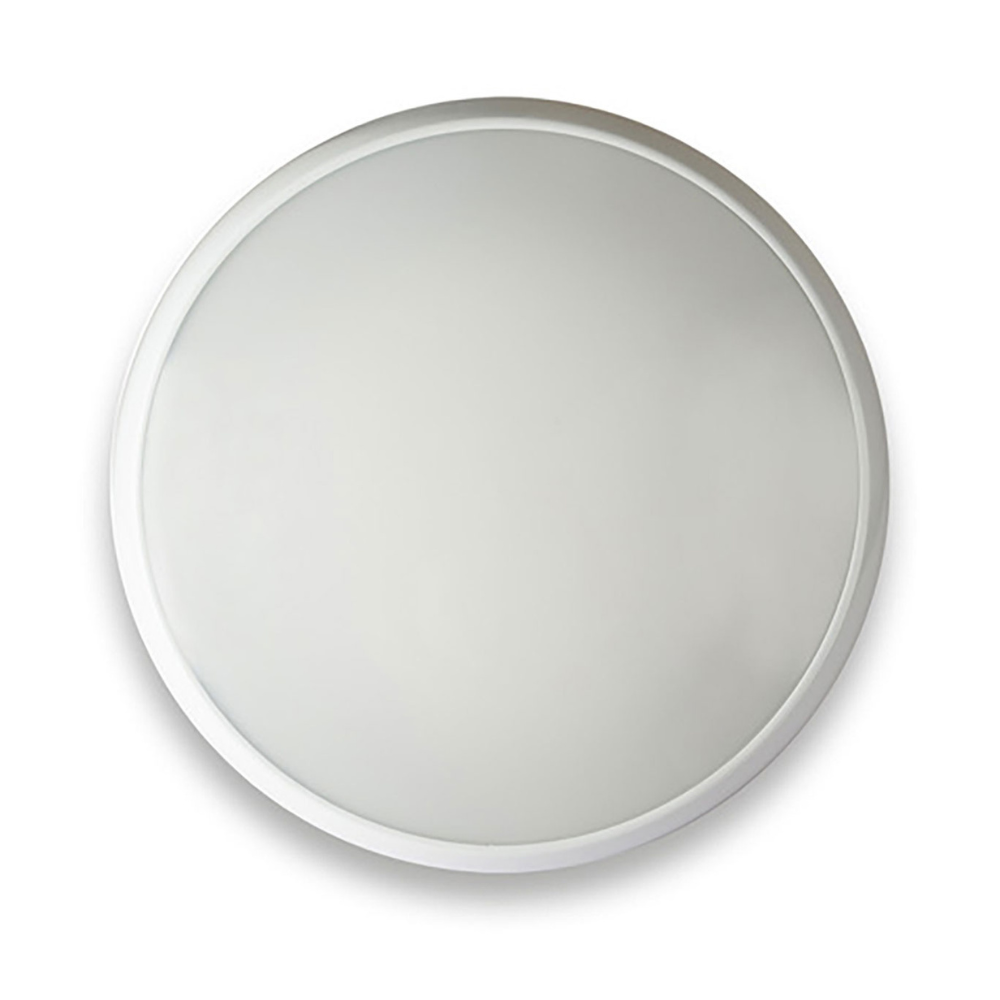

Source S2DMW-EM 9/14/18 W emergency LED bulkhead, IP65, 3 h
Source · SGD Lighting
2D 18W LED FITTING CCT
- KEW code
- 2D18LED/E
- Brand
- Source
- Manufacturer
- SGD Lighting
- MPN
- S2DMW-EM
- Category
- Lighting
- Specification
- Product type: Complete circular emergency LED ceiling bulkhead. Manufacturer: SGD Lighting / Source. Model: S2DMW-EM. Light source: Integral LED light source and control gear included. Selectable power: 9 W, 14 W or 18 W. Luminous flux: 1,080 lm at 9 W, 1,680 lm at 14 W and 2,160 lm at 18 W. Colour temperature: Selectable 3000 K, 4000 K or 6500 K. Emergency duration: 3 hours. Emergency luminous flux: 140 lm. Battery: LiFePO4 6.4 V 1000 mAh. Battery charge time: 24 hours. Input voltage: 240 V AC, 50 Hz. Ingress protection: IP65. Dimensions: 318 mm diameter x 82 mm depth. Beam angle: 120 degrees.
- Feature
- Complete emergency ceiling bulkhead with integral LED equipment.
- Feature
- Selectable 9 W, 14 W or 18 W output.
- Feature
- Selectable 3000 K, 4000 K or 6500 K colour temperature.
- Feature
- Built-in three-hour emergency backup.
- Feature
- IP65-rated complete fitting.
- Feature
- Supplied with integral LiFePO4 emergency battery.
